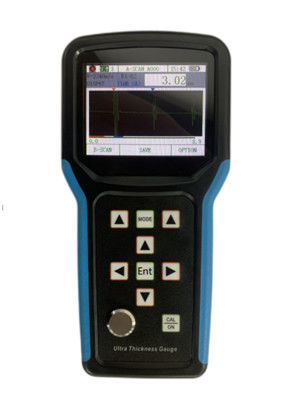

High Frequency 5MHz Ultrasonic Thickness Gauge Powered By 4*1.5V AA Battery For Precise Measurement

Lugar de origen	China.
Nombre de la marca	HUATEC
Certificación	CE ISO GOST
Número de modelo	TG-5700
Cantidad de orden mínima	1 por ciento
Detalles de empaquetado	Paquete del cartón de la exportación
Tiempo de entrega	2 a 3 días
Capacidad de la fuente	500 por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

Datos del producto

Conector de la punta de prueba	Lemo	Frecuencia de la punta de prueba	5 MHz
Rango de velocidad del sonido	Las medidas de seguridad se aplicarán en el caso de los vehículos de motor de las categorías M1 y M2	Peso	0.5 kg
Almacenamiento de datos	Puede almacenar 100.000 gruesos (100 grupos, 1000 en cada grupo), 500 grupos de formas de onda de la	Modo de la medida	(1) MB-e: El modo de la medida basado en el tiempo de tránsito del eco inicial de Echo To The First
Modo de exploración	Una exploración y exploración de B	Resolución	、 0.001m m del、 0.01m m de 0.1m m
Resaltar	high frequency ultrasonic thickness gauge , 5mhz ultrasonic thickness gauge , precise measurement ultrasonic thickness tester

Deja un mensaje

Descripción de producto

Product Description:

The Ultrasonic Thickness Gauge is a wall thickness measuring device that is used to accurately measure various materials. It uses ultrasonic waves to measure the thickness of walls and other materials with precision. This thickness tester has a sleek design with a size of 204 X 100 X 36 (mm). It is powered by 4*1.5V AA batteries. The probe types available are single crystal and double crystal probes. The accuracy of this thickness gauge is +/-0.001mm, providing highly accurate results. The weight of this product is 0.5kg, making it extremely portable and easy to use.
This thickness gauge can provide detailed information about any material, such as wall thickness, material composition, etc. It is widely used in various industries such as automotive, aerospace, manufacturing, etc. This device is an essential tool for ensuring accurate measurements and high-quality products. It is a reliable and efficient device that can provide consistently accurate results.
The Ultrasonic Thickness Gauge is a must-have device for any professional in the engineering and manufacturing industries. This wall thickness gauge is an invaluable tool for ensuring accurate and precise measurements, and high-quality products. It is the perfect tool for measuring and monitoring the thickness of walls and other materials. This ultrasonic thickness tester is an essential tool for any professional in the engineering and manufacturing industries.

Features:

Product Name: Ultrasonic Thickness Gauge
Size: 204 X 100 X 36 (mm)
Measurement Range: 0.15mm – 1800mm
Weight: 0.5kg
Power Supply: 4*1.5V AA Battery
Detection mode: Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG), Full Wave (FULL)
Features: Ultrasonic thickness measuring device for corrosion thickness gauge.

Applications:

HUATEC TG-5700 is an advanced ultrasonic thickness measuring device that can measure the thickness of various materials accurately and quickly. It is the ideal thickness measuring device for industrial and engineering applications. With its excellent performance, the HUATEC TG-5700 ultrasonic thickness gauge can be used to measure the thickness of various materials, including metal, plastic, glass, wood, etc.
The HUATEC TG-5700 ultrasonic thickness gauge is equipped with a variety of detection modes and measurement modes. The detection mode includes radio frequency (RF), positive half wave (POS), negative half wave (NEG) and full wave (FULL). The measurement mode includes MB-E, E-E, ME-E and THIN. MB-E is the measurement mode based on the transit time from the initial echo to the first bottom echo. E-E is penetration coating measurement mode, the arbitrary Em–En echo is optional. ME-E is multiple echo measurement mode and THIN is thin wall measurement mode.
The HUATEC TG-5700 ultrasonic thickness gauge is equipped with a data storage capacity of 100,000 thicknesses (100 groups, 1000 in each group), 500 groups of A-scan waveforms and 500 groups of B-scan waveforms at the same time. This makes it ideal for applications such as monitoring the thickness of pipes, tanks, vessels or any other materials. The size of the device is 204 X 100 X 36 (mm).
The HUATEC TG-5700 ultrasonic thickness gauge is the perfect choice for those looking for an accurate and reliable thickness measuring device. Its advanced features and high precision make it the ideal solution for industrial and engineering applications.

Technical Parameters:

Technical Parameters	Description
Probe type	Single Crystal Probe / Double Crystal Probe
Interface	USB
Measurement Range	0.15mm – 1800mm
Working Temperature	-10°C To +50°C
Display	3.5 "QVGA (320 × 240) Color TFT-LCD Screen
Probe Frequency	5MHz
Probe Connector	LEMO
Detection mode	Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG), Full Wave (FULL)
Accuracy	+/-0.001mm
Measurement frequency	4Hz,8Hz,16Hz

Customization:

Ultrasonic Thickness Gauge - HUATEC TG-5700

HUATEC TG-5700 is a corrosion thickness gauge, an ultrasonic thickness tester used for measuring the thickness of materials. It uses a rechargeable lithium battery and features a USB interface. It is highly accurate and offers four measurement frequencies of 4Hz, 8Hz, 16Hz and a four measurement modes: MB-E, E-E, ME-E, and THIN. The size of the device is 204 X 100 X 36 (mm).
This thickness measuring device is ideal for measuring corrosion in industrial applications such as tanks, pipes, and pressure vessels. It is designed to provide accurate, repeatable measurements for corrosion and other metal loss inspections.
HUATEC TG-5700 is a perfect choice for industries that require reliable and accurate thickness measurement. Get the most accurate and repeatable results with HUATEC's Ultrasonic Thickness Gauge!

Support and Services:

Ultrasonic Thickness Gauge Technical Support and Service

We are proud to offer technical support and service for the Ultrasonic Thickness Gauge. Our team of experienced technicians can provide you with the best service and advice to ensure that your Ultrasonic Thickness Gauge is working properly and efficiently.
We offer troubleshooting assistance, repairs, maintenance, and calibration services for the Ultrasonic Thickness Gauge. We can also provide you with software upgrades, updates, and modifications to ensure peak performance.
If you need assistance with the Ultrasonic Thickness Gauge, please contact us and we will be happy to help. We look forward to providing you with the best technical support and service.

Packing and Shipping:

Ultrasonic Thickness Gauge Packaging and Shipping:
The Ultrasonic Thickness Gauge is packaged and shipped in a cardboard box with protective internal foam.
The box is labeled with the product name, item number, and shipping address. The box is then sealed with tape to ensure that the product is held securely during transit.
The box is then placed in a larger box or container for secure shipping. The larger box or container is labeled with the product name, item number, and shipping address as well.

FAQ:

Q1: What is an Ultrasonic Thickness Gauge?: A1: An Ultrasonic Thickness Gauge is a device used to measure the thickness of a material, such as steel or concrete, without damaging its structure or compromising its integrity.
Q2: What is the brand name and model number of Ultrasonic Thickness Gauge?: A2: The brand name is HUATEC and the model number is TG-5700.
Q3: Where is the Ultrasonic Thickness Gauge made?: A3: The Ultrasonic Thickness Gauge is made in China.
Q4: What are the features of Ultrasonic Thickness Gauge?: A4: The Ultrasonic Thickness Gauge has features such as advanced LCD display, built-in transducer, automatic gain control, and internal memory for data storage.
Q5: How does the Ultrasonic Thickness Gauge work?: A5: The Ultrasonic Thickness Gauge uses sound waves to measure the thickness of a material by sending sound waves through the material and measuring the time it takes for the sound to bounce off the back of the material.
