11 Inch Phased Array Ultrasonic Flaw Detector 800x600 Tft Color Display 16g Memory

Lugar de origen	En Beijing
Nombre de la marca	HUATEC
Certificación	ISO, CE, GOST
Número de modelo	HPA-500
Cantidad de orden mínima	1 piezas
Detalles de empaquetado	Paquete estándar de exportación
Tiempo de entrega	1-4days
Condiciones de pago	T/T, PayPal, Western Union
Capacidad de la fuente	500 piezas por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

Datos del producto

Muestra	Pantalla a color TFT de 800X600 de 11 pulgadas	Memoria	Integrado: 16 GB de RAM + 4 GB de flash; tarjeta SD (máximo hasta 32G); Externo: unidad USB
Sistema de gestión de archivos y entradas	Puente flexible entre la configuración (Ley focal y modelo), calibración e inspección	Configuración modular	L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft, tubería, TOFD, UT ((Convencional),
El DDF	Enfoque dinámico de profundidad (DDF)	El poder	Las emisiones de gases de efecto invernadero de los Estados miembros se determinarán en función de l
Peso neto	3.5 kg con batería	Tamaño	284 mm × 202 mm × 95 mm
Nombre	Equipo de detección de fallas de matriz en fase NDT ultrasónico	El canal	16/64
Resaltar	11 inch phased array flaw detector , tft color display ultrasonic flaw detector , 16g memory ultrasonic flaw detector

Deja un mensaje

Descripción de producto

11 Inch 800X600 TFT Color Display 16G Memory Phased Array Flaw Detector Ndt Ultrasonic Equipment

Breif introduction

HUATEC HPA-500 is a portable 64-CH phased array ultrasonic flaw detector. It is water-proof and oil-proof , fan-free and with touch screen. The whole-process data logging, innovative phased array probes and inspection methods takes the advantages, guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.

Main Functions

★ Advanced File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection

★ Modular configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),

★ 3D Simulation model

★ Image analysis function

★ Natural structure of heat dissipation

★ Dynamic Depth Focusing (DDF)

★ Smooth filtering

★ Touch screen for easy operation

★ ACG calibration function

★ TCG calibration function

Features

1.Dynamic Focusing

11 Inch Phased Array Ultrasonic Flaw Detector 800x600 Tft Color Display 16g Memory 0

II 3D Simulation Model

The 3D simulation scheme can be customized to offer one-for-all solutions.

11 Inch Phased Array Ultrasonic Flaw Detector 800x600 Tft Color Display 16g Memory 1

III. APP Menu

Menu of the software is shown in the manner of APP.

It can be cut down or enlarged accordingly if asked by the users

11 Inch Phased Array Ultrasonic Flaw Detector 800x600 Tft Color Display 16g Memory 2

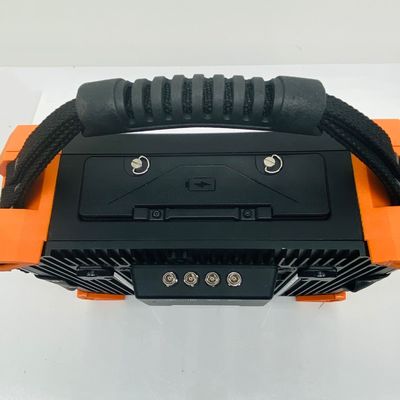

IV Metallic Housing

To strengthen the instrument, both shielding and heat-dissipating

11 Inch Phased Array Ultrasonic Flaw Detector 800x600 Tft Color Display 16g Memory 3

V. Protective Pedestal

To prevent any damage to either the instrument or the object

Channel Configuration

Mode	PA	UT	TOFD
Channel	16:64	2	2

Physical Specification

Display	11-inch 800X600 TFT color display
Transducer Ports	160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R
I/O Ports	USB2.0 Port: 2(qty)
	HDMI; encoder
	LAN(Gigabit-NIC);
	WIFI
	I/O (commissioning)
	2D Encoder
Memory	In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G); External: USB drive
Weight	3.5Kg (with 1 battery)
Dimension	284mm×202mm×95mm
Power Supply	AC:100～240V,50～60Hz；DC:12V
Charging	(battery) within or individually
Battery Life	6 Hours
Working Power	24W
Language	English
Temperature Conditions	Ambiance:-20℃～50℃ Storage:-20℃～60℃
IP	IP54

Performance Specification

Mode	PA	UT	TOFD
PRF	50Hz～10kHz	50Hz～5kHz	50Hz～5kHz
Voltage	Bipolar, ±45～±100V, with 5V per step	Negative Square Wave, -75V～-250V, with 25V per step	Negative Square Wave, -75V～-250V, with 25V per step
Pulse Width	20ns～800ns, with 5ns per step	20～800ns, with 5ns per step	20～800ns, with 5ns per step
Damping	50Ω	80Ω / 400Ω	80Ω / 400Ω
Sampling Rate	125MHz	200MHz	200MHz
Delay Precision	2.5ns	N/A	N/A
Rx Delay	0～40us	N/A	N/A
Bandwidth	0.5MHz～19MHz	0.5MHz～15MHz	0.5MHz～15MHz
Gain	0.0～80dB	0.0～110.0dB	0.0～110.0dB
Filter	0.5-9.6MHz,2.5-12.9MHz, 3.8-19MHz Optional	broadband, narrowband	broadband, narrowband
Rectification	FW	FW	RF
Reject	0~80%	0~80%	0~80%
Scan Mode	A/L/S/C	A	A/D
Triggering	Encoder	N/A	Encoder
Scan Line	Max 128	N/A	N/A
Skew	L-scan:-89°～+89° S-scan:-89°～+89°	N/A	N/A
Smart-Cal	Velocity/Delay/ACG/TCG/Encoder	DAC/DGS	Delay/X-Value/PCS/ Wave/Encoder
Range	0.0～1000mm, min 1mm	0.0～2000mm	0.0～2000mm
Displaying Delay (max)	1000mm	2000mm	2000mm
Pulse Shift (max)	N/A	2000mm	2000mm
Unit	mm	mm	mm
Gate	A/B	A/B	A/B
Gate Start	Available within the range	Available within the range	Available within the range
Gate Width	Available within the range	Available within the range	Available within the range
Gate Threshold	0-100%	5-95%	0-100%
Alarm Signal	Buzzer / LED	Buzzer / LED	Buzzer / LED
Spotting	Crest / Flank	Crest / Flank	Crest / Flank
Readout	Amp/Path/ Horizontal/Depth	Amp/Path /Horizontal/Depth	Amp/Path /Horizontal/Depth
Resolution	0.5mm	0.1mm	0.1mm

HPA-500 Application

Common or special welded seam of steel structure, utility boiler, pressure vessel, pipeline, nuclear power infrastructures, watercraft, oil tank, ethylene tube, etc.
Railway welded seams, locomotive wheel sets and axles.
Aluminum alloy FSW butts and bonding of composites used in aerospace industry.
Blades and bolts used in power industry.
Cases when there’s not enough space for movement whilst inspection; Cases when conventional UT is preferred.

Standard packing list

Main unit HPA-500 1pc

PAUT Probe 1pc

PAUT Probe Wedge 2pcs

UT Normal Probe 2.5P20 1pc

UT Angle Probe 2.5P13×13 60°1pc

UT Probe Cable LEMO 00-BNC 2pcs

Li-ion battery 1pc

Charger 1pc

Power converter 1pc

HDMI Cable 1pc

Crossover Cable 1pc

Allen Wrench (S2.5) 1pc

Instrument Suitcase 1pc

USB Drive Disk (8G) 1pc

User Manual 1pc

Calibration Certificate 1pc

Optional accessories

TOFD Probe 5MHz 6mm/7.5MHz 3mm/

TOFD Wedge 60°w/anti-wear nail , 70°w/anti-wear nail

TOFD Wedge R100 curve surface R100/0°

TOFD Probe Cable LEMO 00-LEMO 00

Non-Parallel TOFD Scanner

Scanner for Phased Array

Encoder Cable Extension

Other Allen Wrench for TOFD

Other probes/wedge for Phased Array and TOFD

Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Test block V1,V2,PAUT, PA-A, PA-B
Test block TOFD
Test blocks DAC, ASME etc.

PAUT block

Phased array type A, Type B block
