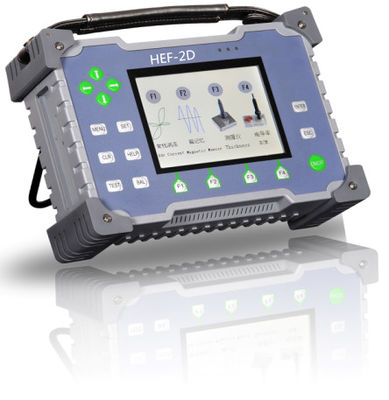

10 Hz to 10 MHz Frequency Range Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance
| Lugar de origen | En Beijing |
|---|---|
| Nombre de la marca | HUATEC |
| Certificación | ISO, CE, GOST |
| Número de modelo | HEF-2D |
| Cantidad de orden mínima | 1 piezas |
| Detalles de empaquetado | Paquete estándar de exportación |
| Tiempo de entrega | 1-4days |
| Condiciones de pago | T/T, PayPal, Western Union |
| Capacidad de la fuente | 500 piezas por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
En WeChat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Fuente de alimentación | 110 V 220 V, batería de litio recargable incorporada 8000 MAH | Temperatura de funcionamiento | -20° 60°C |
|---|---|---|---|
| sistema estándar | Coordenadas cartesianas, coordenadas polares | Dimensiones del instrumento | 250 mm x 200 mm x 85 mm,Peso: 2,0 kg |
| Muestra | forma de onda, valor, así que a simple vista | Utilizando el filtro digital DSP | frecuencia de paso alto y baja ((0Hz~2000Hz) |
| Configuración de alarma | configuración de tamaño no igual independiente de cada canal | Sonido de la alarma | Con./desc. |
| Método de prueba | método de corriente de remolino | ||
| Resaltar | eddy current testing machine,eddy current tester |
||
Descripción de producto
| |
| Product description | |
| ◆ | HEF-2D is HUATEC electromagnetic product family adds a "forcing", using the world's most advanced DSP and FPGA integration technology greatly improve the signal processing speed, detection accuracy rate is 10 times that of similar products. |
| ◆ | Suitable for almost all eddy current testing applications, but also effectively suppress interference signals, which not only has a conventional digital "dual" eddy current testing, also has a "magnetic memory, conductivity, thickness measurement" measurement functions, products widely used in military vulnerability assessment ( surface inspection blades, wheels, landing gear and other aircraft components); aircraft rivet holes or bolt holes in the surface crack detection hole without dismantling or removing fasteners state, the multilayer structure of the aircraft, and aluminum skin detection wing fuselage joints, the stress of the metal structure has a strong focus on early diagnosis function. |
| ◆ | HEF-2D Fool-style operation available., Without long time special training, we will be able to work posts. |
| ◆ | Special Note :Two functions required to configure different sensors support. |
| Applications | |

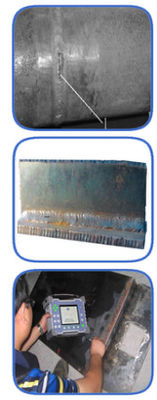

| ◆ | For aerospace, aviation, special, college education, metal parts, pipe, structure, weld, metal parts testing. |
| Technical Parameters | |||||||
| Eddy current testing technical indicators: |
| ||||||
| ◆ | Large screen, high brightness 5.7-inch color TFT-LCD, to solve the shortcomings of traditional screen | ||||||
| ◆ | Independent Detection Frequency:2 in total | ||||||
| ◆ | Frequency range: 10 Hz to 10 MHz, excellent frequency regulation performance | ||||||
| ◆ | Gain: 0 dB ~ 99 dB, wide gain adjustment | ||||||
| ◆ | Phase:0～359°,Step 1 Deg , flexible phase rotation | ||||||
| ◆ | Intelligent Mixing Unit:1 in total | ||||||
| ◆ | Lift-off height: 1--3mm, no need to hide the surface layer processing | ||||||
| ◆ | Automatic Balance:Digital Electronic Balance | ||||||
| ◆ | Phase / non-amplitude, box and fan boxes, alarm mode to meet your testing needs | ||||||
| ◆ | Probe Driver:Vpp=1～8V,meet different probe structures, multi-function | ||||||
| ◆ | Independent X and Y gain adjustment | ||||||
| ◆ | Digital Filtering:HPF(0Hz～2000Hz),LPF(0Hz～2000Hz) | ||||||
| ◆ | Capacity USB 2.0 (Host) output connection | ||||||
| ◆ | Eddy current detection signal playback, analysis, save, print function | ||||||
| ◆ | Center coordinates: X Y adjustable | ||||||
| ◆ | Operating System:Linux 2.6 Operation Language:English/Chinese | ||||||
| ◆ | Display Mode:Impedance, time base, rectangular coordinates, polar coordinates | ||||||
| ◆ | Power Supply : 110V～220V, built-in rechargeable lithium battery 8000MAH | ||||||
| ◆ | Online hotkey graphics, text help | ||||||
| ◆ | Operating Temperature: -20° ～ 60°Ｃ | ||||||
| ◆ | Standard system: Cartesian coordinates, polar coordinates | ||||||
| ◆ | Instrument dimensions:250 MM x 200 MM x 85 MM,Weight:2.0KG | ||||||
| ◆ | Display: waveform, value, so you at a glance； | ||||||
| ◆ | Using DSP digital filtering: high-pass, low-pass frequency(0Hz～2000Hz) | Standard configuration | |||||
| ◆ | Fast digital electronic balance | ◆ | Host HEF-2D:One set | ||||

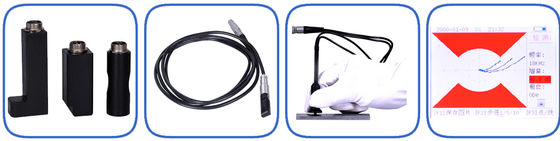

| ◆ | Automatically clear the "magnetic field" effect | ◆ | Probe:Plane probe, through type probe, thickness probe | ||||
| ◆ | Alarm setting: each channel independent non-equal size settings | ◆ | Probe cable: ONE | ||||
| ◆ | Alarm sound: On / Off | ◆ | Charger: ONE | ||||
| ◆ | 100 sets of detection process parameter storage | ◆ | Battery: ONE | ||||
| ◆ | 10000 graphics storage, graphics can be saved as a U disk | ◆ | Test block: Optional | ||||
| ◆ | Instructions :ONE | ||||||
| Coating thickness measurement technical data: | ◆ | Warranty Card : ONE | |||||
| ◆ | Testing method: eddy current method | ◆ | Product List : ONE | ||||
| ◆ | Matrix: iron, non-ferrous | ||||||
| ◆ | Conductivity test range:0—1500μm (0—59.04mil) | ||||||
| ◆ | Display units:um & mil convertible | ||||||
| ◆ | Resolution:1um | ||||||
| ◆ | Accuracy: ±1um | ||||||
| ◆ | Data memory: the measurement data can be stored for more than 1000 | ||||||
| ◆ | Language: Chinese, English | ||||||
