Name: Directional radiation portable X-ray flaw detector XXQ-2005 with glass x-ray tube
Brand: HUATEC GROUP CORPORATION
SKU: XXQ-2005
Price: 1,090.00 USD
Availability: InStock

Nombre De La Marca:	HUATEC
Número De Modelo:	XXQ-2005
Cantidad Mínima De Pedido:	1 Uds.
Detalles De Embalaje:	Paquete de exportación estándar
Condiciones De Pago:	T/T, PayPal, Western Union

Información Detallada

Descripción del producto

Calificaciones y Reseñas

Información Detallada

Lugar de origen:

Pekín

Certificación:

ISO, CE, GOST

Capacidad de la fuente:

500 piezas por mes

Resaltar:

x ray inspection equipment

welding x ray machine

Descripción del producto

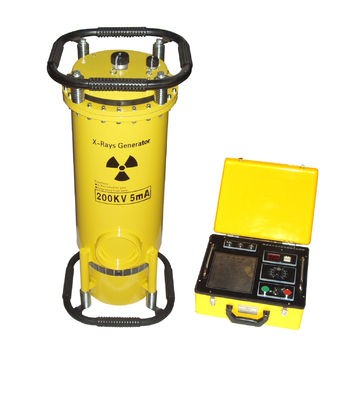

Directional radiation portable X-ray flaw detector XXQ-2005
(Glass x-ray tube)

XXQ series are suitable for the material directional of thin iron plate, aluminum, rubber and so on, may get very good picture quality and clarity.

Feature:
●Checking the software and hardware itself after start the machine

●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports

●Can adjust exposure parameters with keys ( easy operation.)

●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field

●Can adjust high voltage slowly for protecting X-ray generator

●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.

●Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming

●Convenient for repairing and maintenance

●Much more Substance for structure designing, much more convenient for local operation

●Time can be changed for±0.3 according to the power supply net to make the exposure more precise

Specification:

Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG)

Dimensions (mm)

Generator

Controller

Generator

Controller

XXQ-2005

100-200

2.0

1.5X1.5

40+5°

22.5

9.4

280x280x650

350x290x160

Standard Delivery

Directional glass X-ray tube	1 Pcs
Generator	1 Set
High voltage joins cable	1 Pcs	25 Meters
Controller	1 Set
Power cable	1 Pcs	10 Meters
Grounding cable	1 Pcs	5 Meters
Accessories	1 Set
(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
