Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge
| Lugar de origen | En Beijing |
|---|---|
| Nombre de la marca | HUATEC |
| Certificación | ISO, CE, GOST |
| Número de modelo | Tamaño de soldadura automático Medidor de soldadura de tipo Cambridge Medidor de soldadura |
| Cantidad de orden mínima | 1 piezas |
| Detalles de empaquetado | Paquete estándar de exportación |
| Tiempo de entrega | 1-4days |
| Condiciones de pago | T/T, PayPal, Western Union |
| Capacidad de la fuente | 500 piezas por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
En WeChat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| El material | Acero inoxidable | Marca del producto | Huatec |
|---|---|---|---|
| Resaltar | x ray inspection equipment,industrial x ray machine |
||
Descripción de producto
X-Ray Flaw Detector MG-8 Cam Type Weld Gauge / Welding Gauge Series Taper gauge

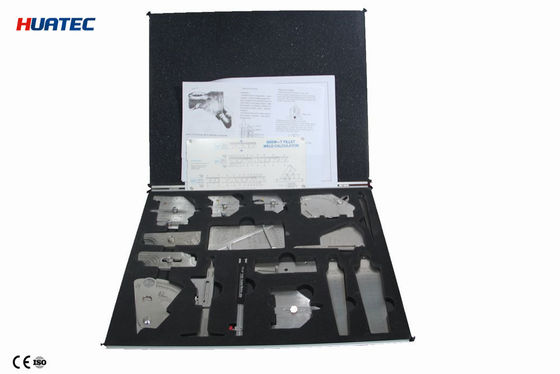

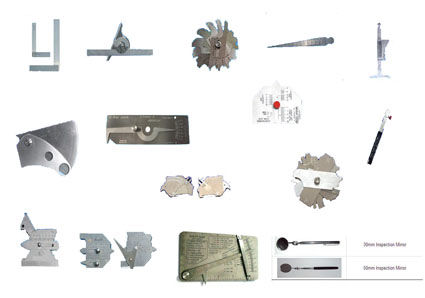

WELDING GAUGE SERIES

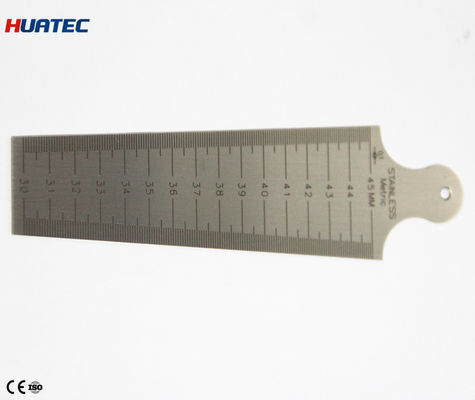

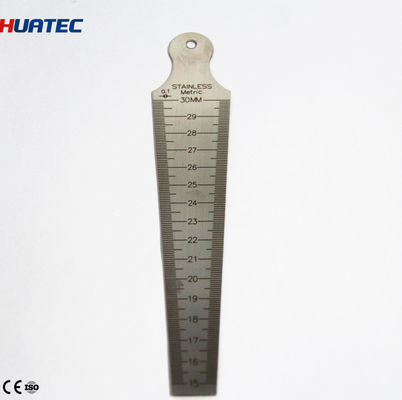

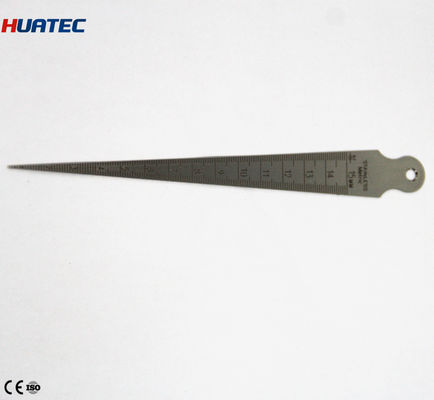

Wide-seat square Taper gauge
spec:63*40-630*400mm
180°malleable iron square MG-11(metric system)

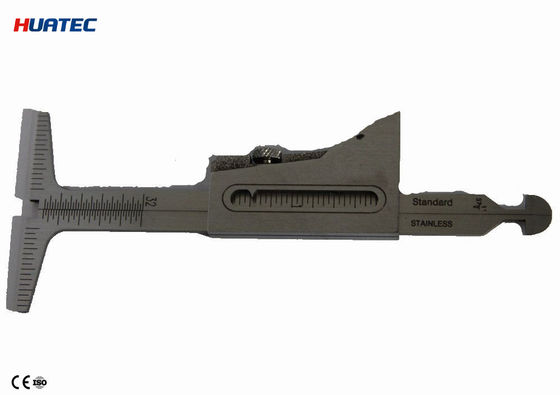

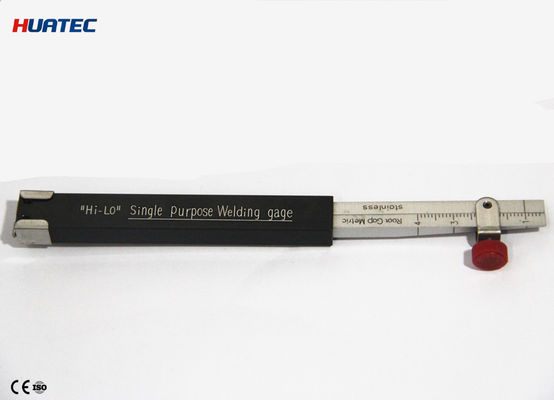

G.A.L. HI-LO Welding Gauge Measures internal Alignments G.A.L ECONOMY Single Purpose HI-LO Welding Gauge

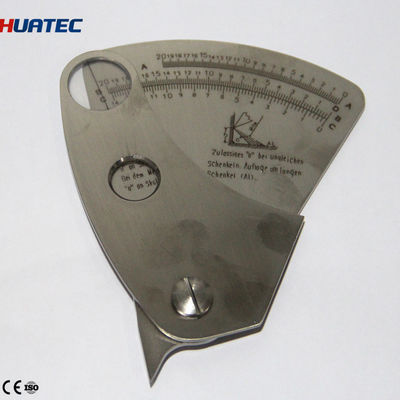

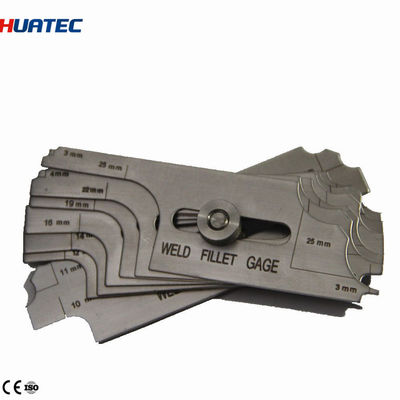

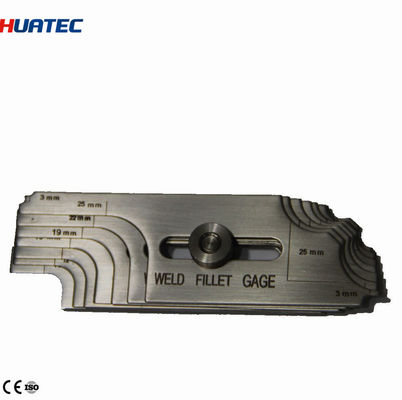

Automatic Weld Size Weld Gauge FAN-SHAPED Gauge
BITING EDGE GAUGE

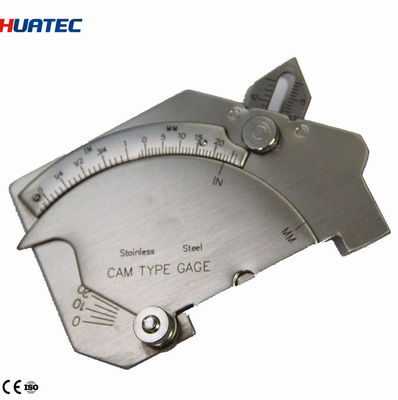

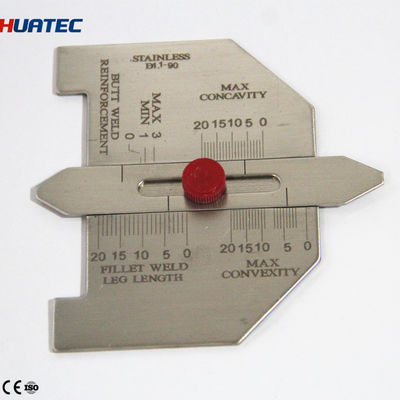

MG-8 Cam Type Weld Gauge MG-11 Cam Type Weld Gauge
|
Measurement Items |
Range |
Parameters |
Tools |
|
Width |
0—20mm |
0.2 |
0.02 vernier caliper |
|
Height |
0—12mm |
Plug gauge, tabulate gauge |
|
|
Width of Fillet Weld |
0—20mm |
||
|
Movable Bevel Angle |
20°, 30°, |
±2° |
±30' angle gauge |
|
Single-side Bevel Angle |
117.5—122.5 |
±30' |
±10″universal gauge |
|
Bevel Angle |
45°, 55°, |
±30' |
±10″universal gauge |
|
Gap Size |
0.5-3.5mm |
0.1 |
0.02 vernier caliper |

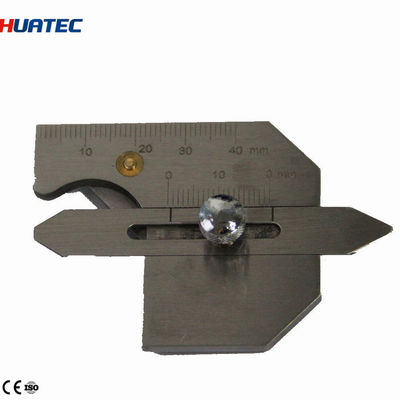

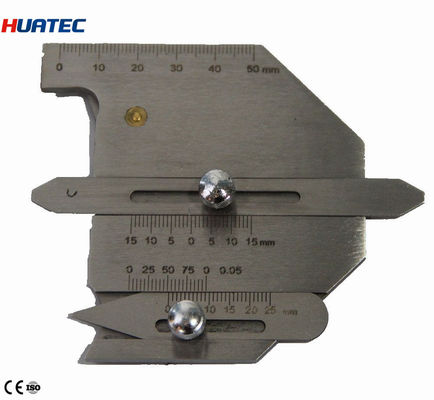

Welding Gauge Model HJ30
The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement
Welding Gauge ModelHJC60/40
The gauge consists of main scale, height gauge, undercut depthgauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.
Welding Gauge ModelHJC60
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
0—15 |
0.2 |
|
Height of Fillet Weld |
0.2 |
||
|
Thickness of Fillet Weld |
0.2 |
||
|
Width |
0—60 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
80—160 |
30 |
|
|
Gap Size |
0.5—6 |
0.1 |
|
Welding Gauge ModelHJC40
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
|
0.2 |
|
Height of Fillet Weld |
0—12 |
0.2 |
|
|
Thickness of Fillet Weld |
0—15 |
0.2 |
|
|
Width |
0—40 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
≤150 |
30 |
|
|
Gap Size |
0.5—5 |
0.1 |
|
Pipe pit gauge
Inspection mirror
