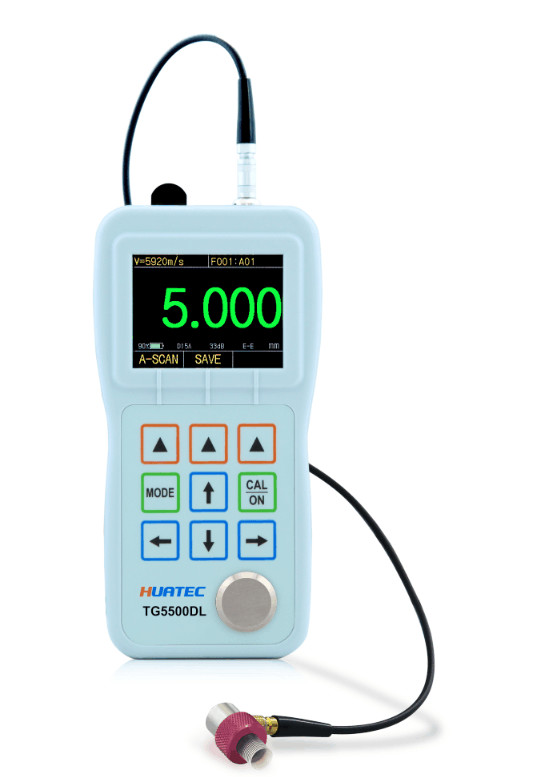

TG5500DL Series Ultrasonic Thickness Gauge

Usage

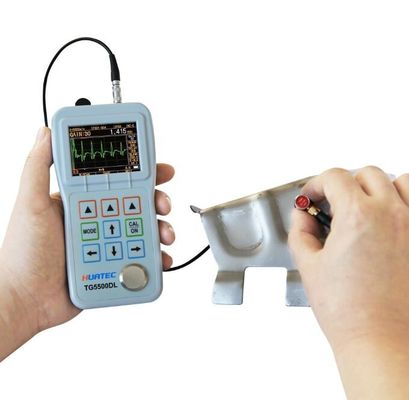

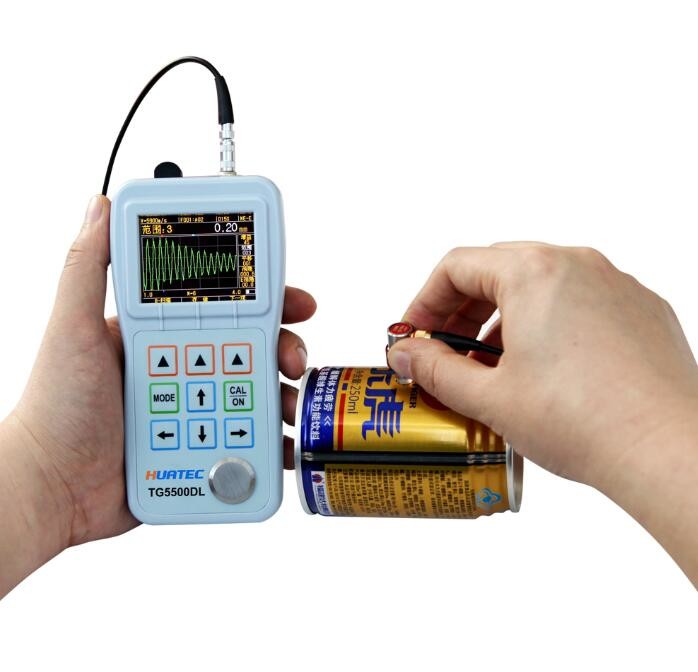

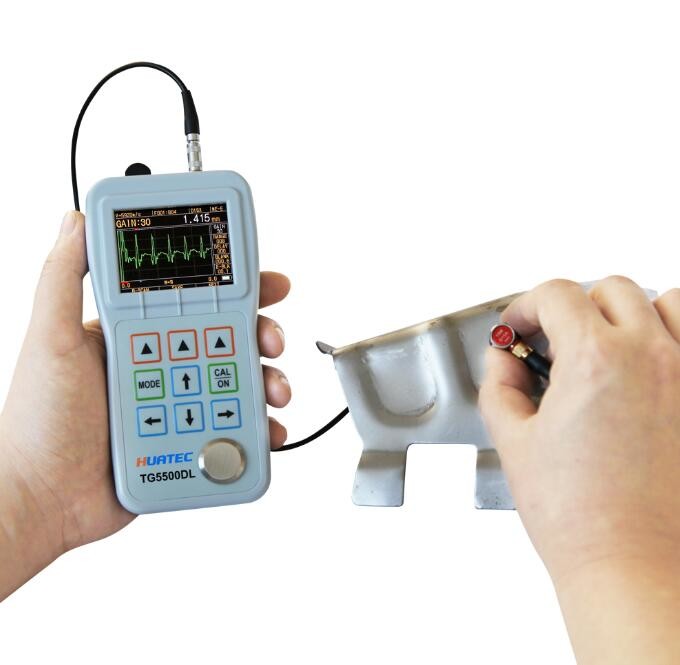

Widely used to measure the thickness of metal materials. Especially display its advantage for measuring the thin piece and high precision measuring. What’s more, it can also through the thin coating layer and paint layer, and also be used to measure ultra thin wall with paint layer like fire extinguisher.
Main Functions
1.Unique Multiple-wave check method, make use of multiple consecutive echos to verify. Meanwhile accomplish measuring of thin piece and high precision.
2.Unique AUTO measuring mode, can be selected automatically available upon the request of the thickness of the work piece, easy and simple to operate.
3.Parameter configuration interface is simple and easy to operate.
4.Adjustable Live A-scan waveform display, control of Gain, Blanking, Gate, Range and Delay etc.
5.Time-based B-scan function, displays a cross section of the test piece, for observing the underside outline of the piece.
6.Numerical view, display thickness values with big digit.
7.Thickness alarm: programmable Hi-Low alarm set point with dynamic change thickness value’s color.
8.Limit value mode: catching the minimum and maximum values when measuring.
9.Difference mode: getting the difference between the actual value and the normal value as well as the percentage of difference value and normal value.
10.Selectable units of mm and inch.
11.Optional resolution: X.XXX mm, X.XX mm and X.X mm; X.XXXX inch, X.XXX inch and X.XX inch.
12.Optional waveform style: outline mode or fill mode.
13.Optional rectification mode: RF+, RF-, full wave, half +, half -
14.Support adjustment of velocity and single-point calibration
15.Multi-languages Available: Chinese, English, German, French and Japanese, ahead of agreeing with the company.

16.Approx. battery life: 35 hours.

17. Measure the net thickness of the workpiece through the coating layer.

18.Connectable to the PC, and derive data from the Instrument.

19.Measure the net thickness of the workpiece through the coating layer.

Specifications

Standard Configuration

Optional Configurations
