xDatos del producto
| El tiempo de funcionamiento | 4.5 a 14 minutos | Velocidad del chip | 100 ~ 33 mm / min |
|---|---|---|---|
| Tiempo de desarrollo | 60-180 segundos (se recomienda 90 segundos) | volumen de lavado | 350*430 mm 20 hojas / hora; 80*300 mm 80 hojas / hora (P14A) |
| Temperatura del agua | Entre 5 y 30 grados | ||
| Resaltar | x ray inspection equipment,industrial x ray machine |
||
Descripción de producto

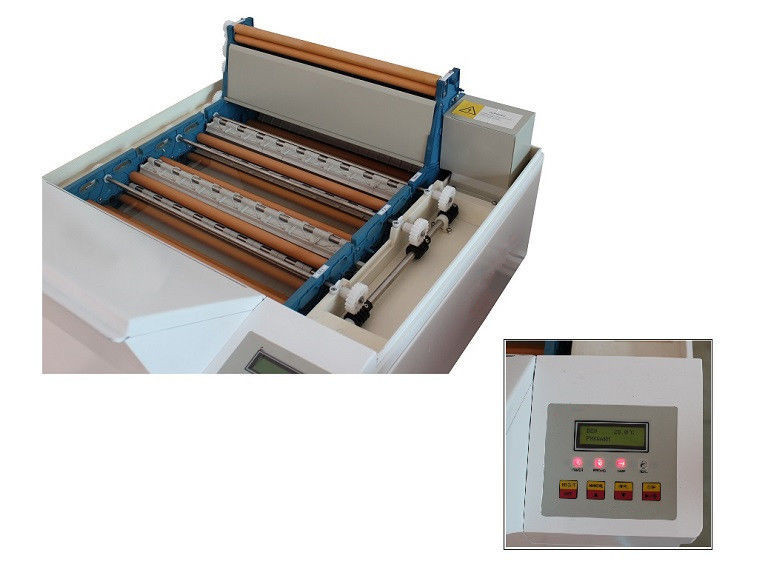

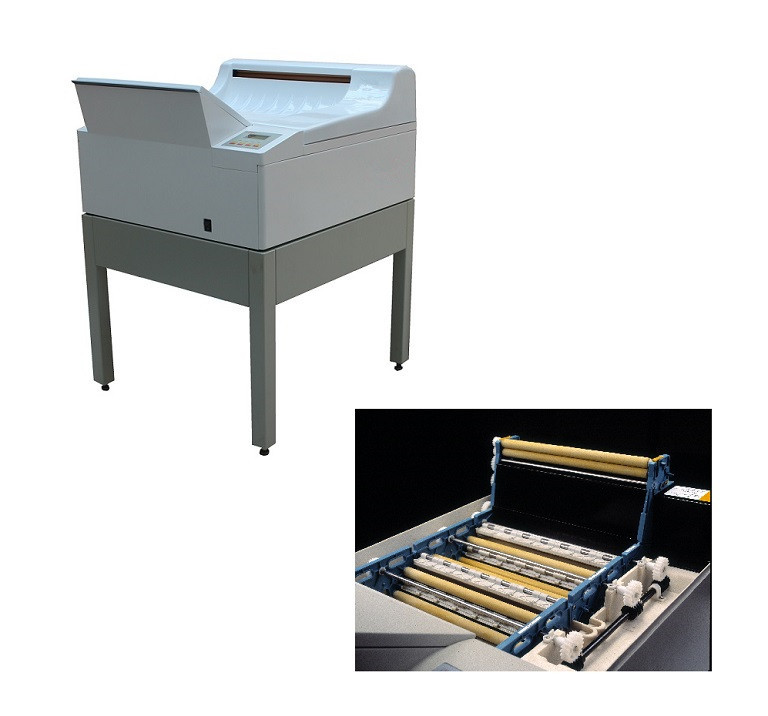

HUATEC HDL-P14A NDT/HDL-P17A NDT Film developer processor
HDL-P14A NDT, HDL-P17A NDT is the two high market, economical and practical industrial flushing machine. It washes the width and speed of high quality, good reliability and various specifications. It is widely used in the construction of boiler, shipbuilding, pressure vessel, petroleum and natural gas pipeline, and the quality inspection of various kinds of dynamic and pressure equipment. Praised by the clients of the testing industry.
Outstanding features:
digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.
The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.
drying system adopts special roller combination and electronic control to ensure hot air drying film.
anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.
Technical parameters:
The size of u film is minimum 60 * 100mm, the widest 350mm width (P17A the widest 450mm) and the longest film is 15 meters.
film type film & sheet film
The running time of u is 4.5 to 14 minutes
chip speed 100~33 mm / min
development time is 60-180 seconds (recommended for 90 seconds)
washing volume 350*430mm 20 sheets / hour; 80*300mm 80 sheets / hour (P14A)
350*430mm 25 sheets / hour; 80*300mm 100 sheets / hour (P17A)
volume development, fixing and washing 5.2 litres (P17A each 6.8 liters).
supplementary volume automatic test supplement 50-200 ml / m2
development temperature can be adjusted from 20-40 degrees
setting temperature automatically adjusts according to developing temperature
drying temperature 40-70 degrees
water temperature 5~30 degree
water consumption film is less than 2 liters / minutes during operation
power 220~240V8.8A 50 or 60Hz
weight 50 kg 60 kg (P17A)
volume (long * width * height) 78 x 59 x 45 cm (P17A:78 * 59 * 45cm)
