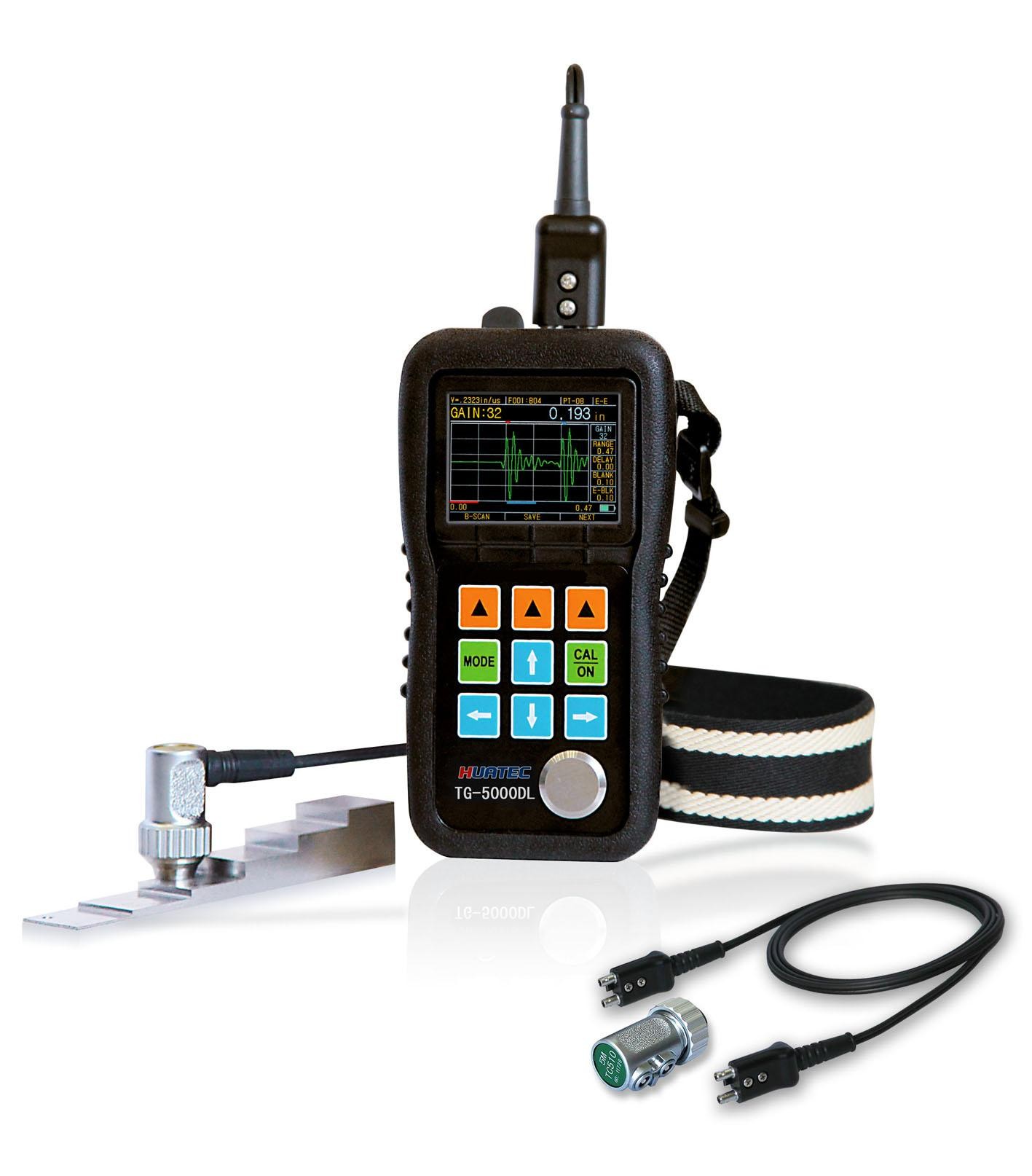

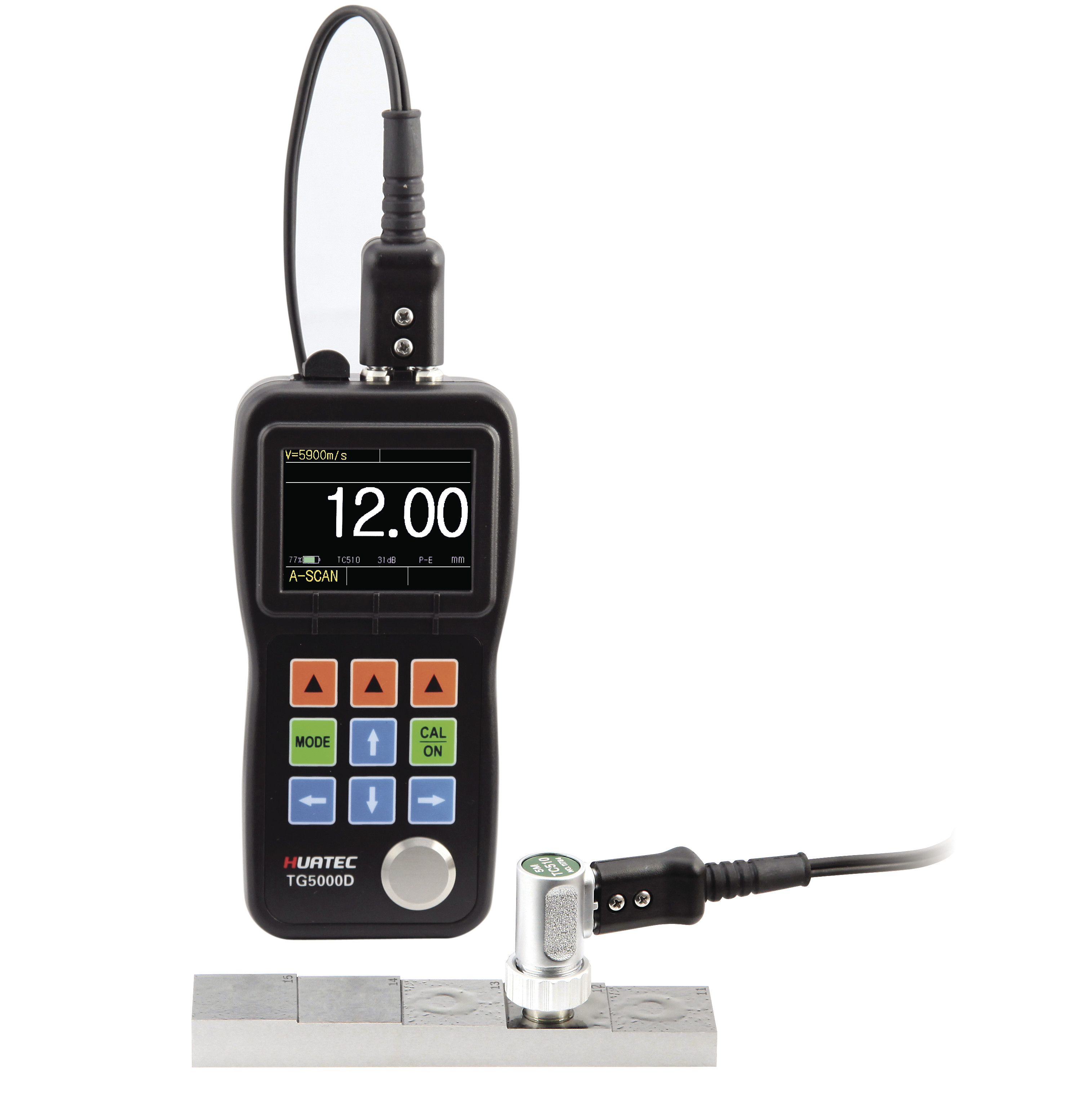

Live A-Scan / Time-based B-Scan Ultrasonic Thickness Gauge TG5000 Series Ultrasonic
| Lugar de origen | En Beijing |
|---|---|
| Nombre de la marca | HUATEC |
| Certificación | ISO, CE, GOST |
| Número de modelo | Se trata de un sistema de control de las emisiones de gases. |
| Cantidad de orden mínima | 1 piezas |
| Detalles de empaquetado | Paquete estándar de exportación |
| Tiempo de entrega | 1-4days |
| Condiciones de pago | T/T, PayPal, Western Union |
| Capacidad de la fuente | 500 piezas por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
En WeChat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Modo de exploración | Escaneo A / Escaneo B basado en el tiempo | Muestra | Color 320x240 Píxeles Muestra |
|---|---|---|---|
| Memoria | 100, 000 Lecturas y 1000 forma de onda | Rango de medición | 0.50 mm a 508 mm ((0,02" a 20,00"), según el material, la sonda y el estado de la superficie |
| Rectifique el modo | RF+, RF, HALF+, MITAD, POR COMPLETO | ||
| Resaltar | portable ultrasonic thickness gauge,digital ultrasonic thickness gauge |
||
Descripción de producto
Live A-Scan / Time-based B-Scan Paint Thickness Gauge TG5000 Series Ultrasonic
Features:
Color 320x240 Pixels Display
LiveSimultaneous Color A-Scan and Thickness Display
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
Time-based B-Scan Display
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings and 1000 waveform
Specifications
|

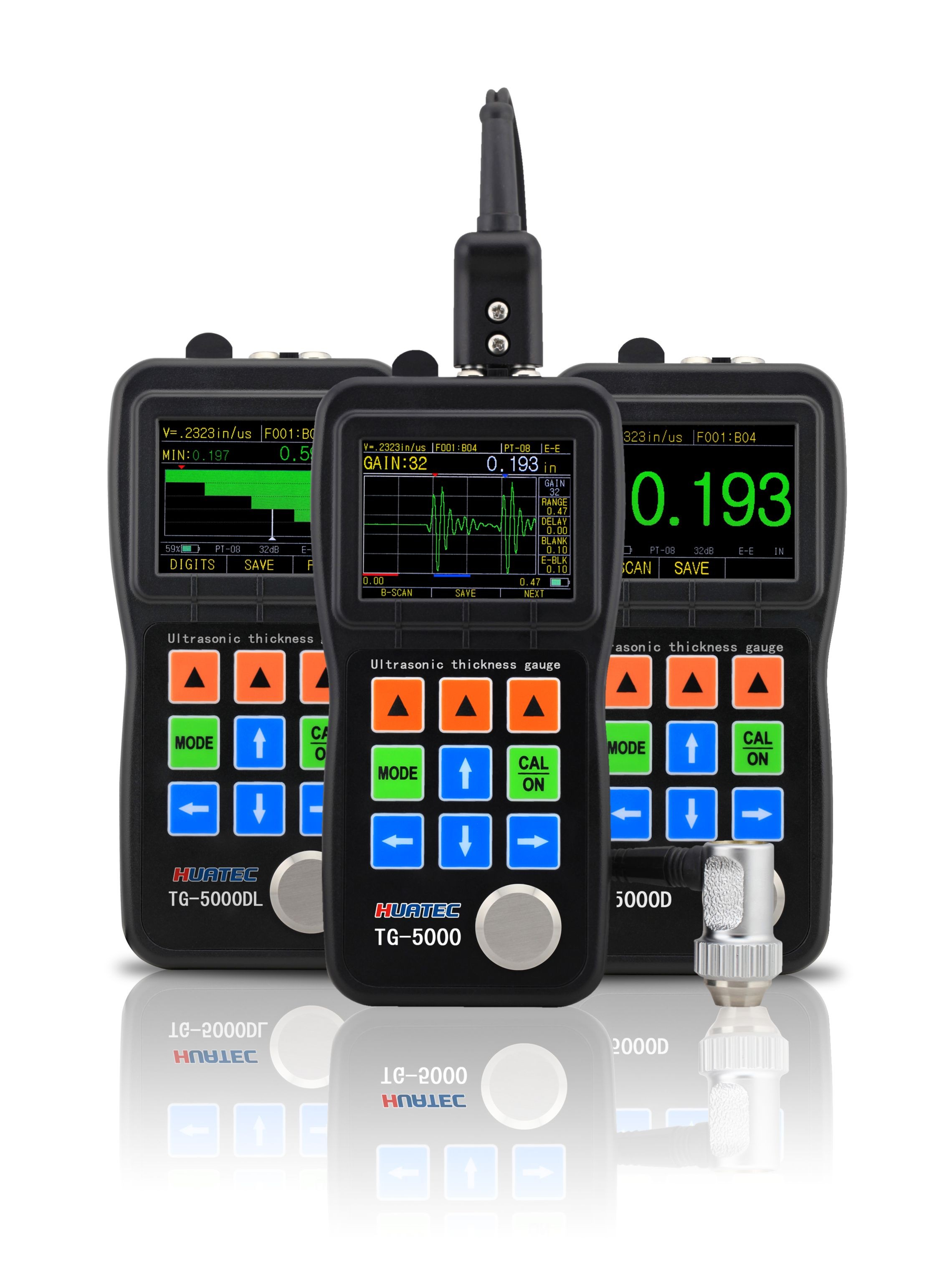

Feature |
TG-5000 |
TG-5000D |
TG-5000DL |
Data Logger Option |
|
Color Display |
|
|
|
|
|
Live A-Scan |
|
|
|
|
|
Time-based B-Scan |
|
|
|
|
|
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes |
|
|
|
|
|
Echo-Echo Mode (Thru Paint & Coatings) |
X |
|
|
|
|
Data Logger |
X |
X |
|
|
|
Data View Software |
X |
X |
|
|
|
Instrument Specifications |
|
|
Display Type |
2.4" color OLED, 320X240 pixels, contrast 10,000:1 |
|
Operating Principle |
Pulse echo with dual element transducers |
|
Measuring Range |
0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition |
| Through Coating Function | Coating thickness:0-8mm;Measuring range:3-50mm |
|
MeasuringResolution |
Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01") |
|
Units |
Inch or Millimeter |
|
Rectify Modes |
RF+, RF-, HALF+, HALF-, FULL |
|
Display Mode |
Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan |
|
V-Path Correction |
Automatic |
|
Update Rate |
Selectable 4Hz, 8Hz, 16Hz |
|
MaterialVelocity Range |
500 to 9999m/s (0.0197 to 0.3937in/us) |
|
Languages |
English |
|
Alarm Settings |
Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm |
|
Power Requirements |
2 AA size batteries |
|
Operating Time |
Approximately 40 hours |
|
Instrument Shut-off |
Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity |
|
Operating Temperature |
-10°C to +50°C (+10°F to +120°F) |
|
Size |
153mm X 76mm X 37mm(H X W X D) |
|
Weight |
280g including batteries |
|
Data Logger Option Features |
|
|
Capacity |
100,000 readings,1000 waveforms,400 files |
|
File Structure |
Grid file |
|
Rows X Columns |
21 X 12 |
|
CommunicationPort |
USB 2.0 (Full Speed ) port |
|
Software |
Data View PC software |
|
TG-5000 Series Probe/Transducer Specifications |
|||||||
|
Model |

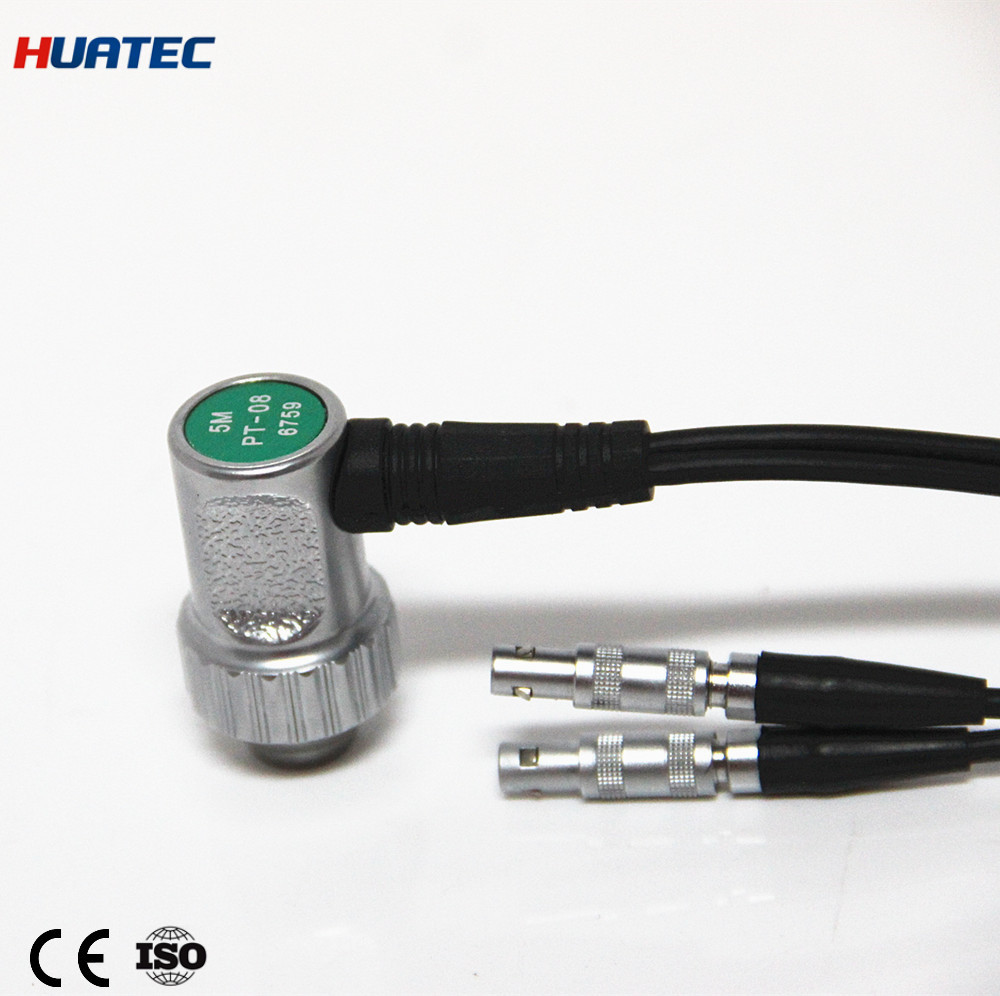

PT08 |
TC510 |
PT12 |
ZT12 |
PT06 |
PT04 |
GT12 |
|
Type |
TG-5000 |
TG-5000D/DL Standard |
Standard |
Cast iron |
Small tube |
Fingertip |
High-Temperature |
|
Frequency |
5MHz |
5MHz |
5MHz |
2MHz |
7.5MHz |
10MHz |
5MHz |
|
Contact Diameter |
11mm |
13.5mm |
13.5mm |
17mm |
8mm |
6mm |
15mm |
|
MeasurementRange |
0.8 to |
1.2 to |
1.0 to 200.0mm |
4.0 to |
0.8 to |
0.7 to 12.0mm |
4.0 to |
|
TemperatureRange |
-10 to 70℃ |
-10 to |
-10 to 70℃ |
-10 to 70℃ |
-10 to |
-10 to 70℃ |
-20 to 300℃ |
|

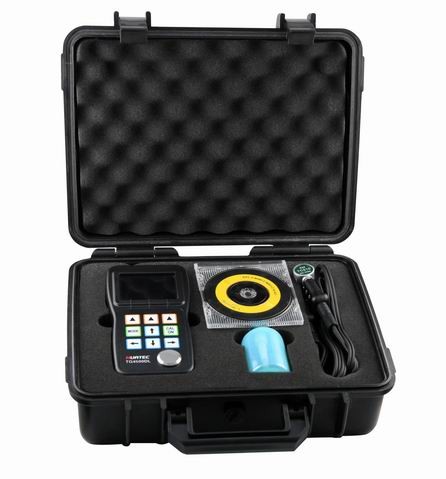

Standard Configurations |
|
|
Thickness Gauge |
1 |
|
Probe |
1 |
|
Alkaline Battery |
2 |
|
Couplant |
1 |
|
Carrying Case |
1 |
|
Operation Manual |
1 |
|
USB Cable |
1(Only TG-5000DL) |
|
Software CD |
1(Only TG-5000DL) |
|
Optional Configurations |
|
|
High-temperature Probe |
Cast Iron Probe |
|
Small Probe |
Mini Probe |
|
Probe Cable |

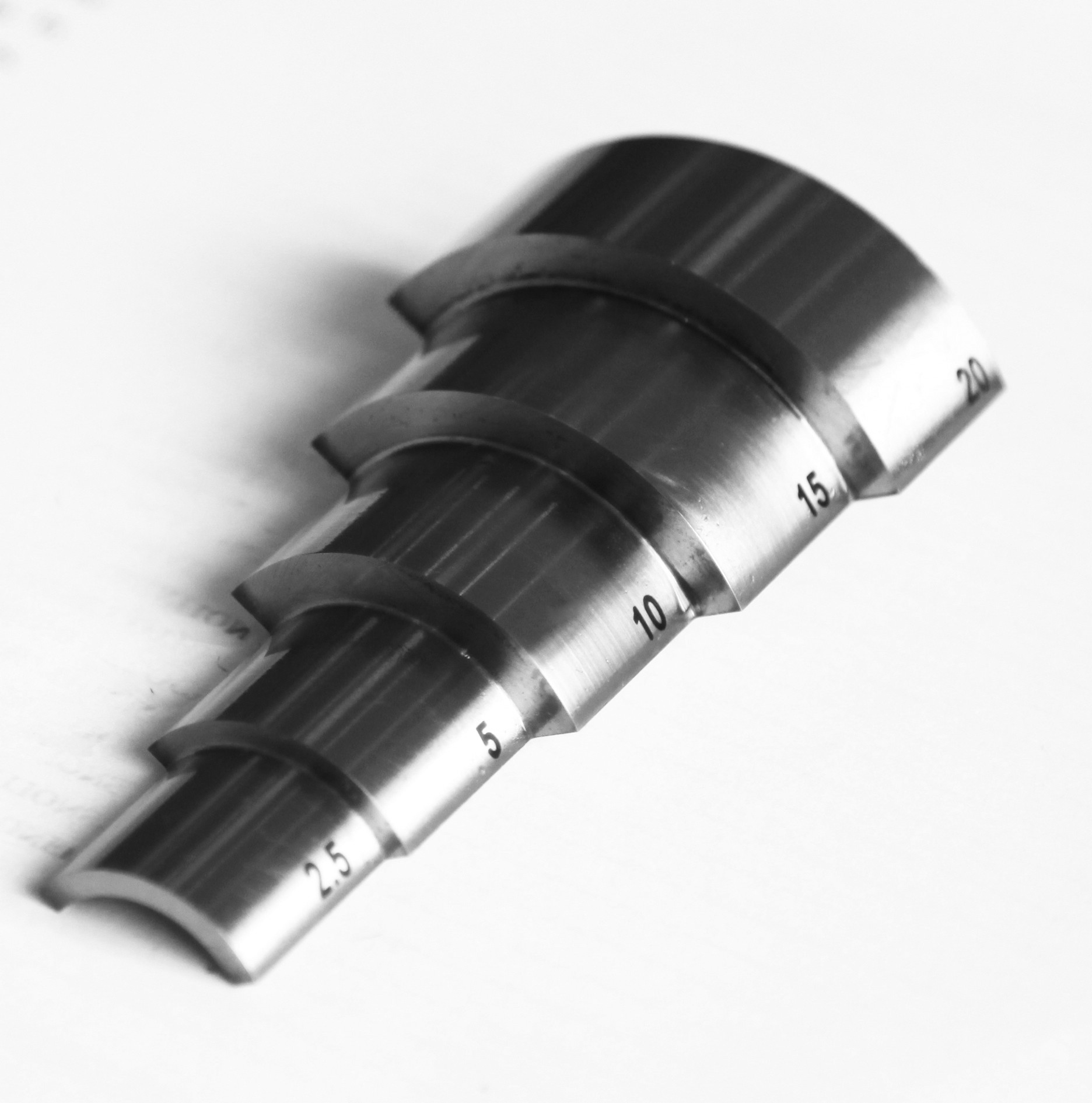

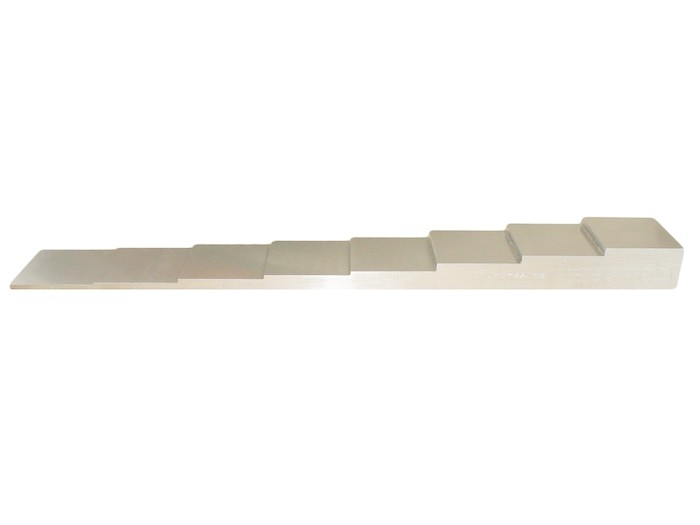

Stepped Calibration Block |
|
Rubber Sheath |
Storage Option(Only TG-5000DL) |
