Descripción de producto

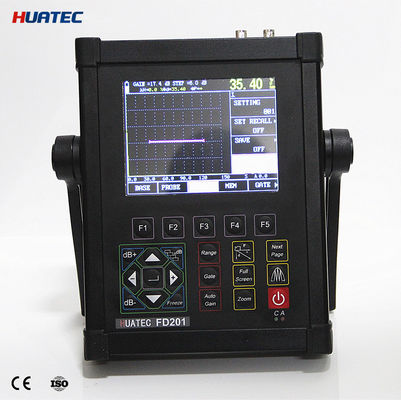

Digital Ultrasonic Flaw Detector FD201, UT, flaw detector, ultrasonic testing equipment, ndt, ultrasonic detector,portable ultrasonic flaw detector

Production Info. :
·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright

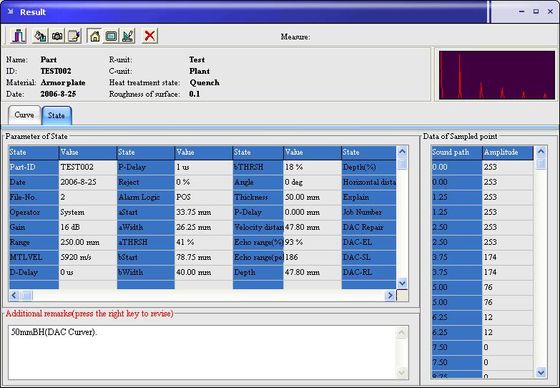

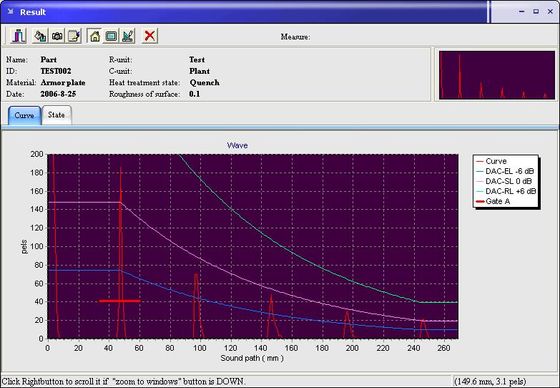

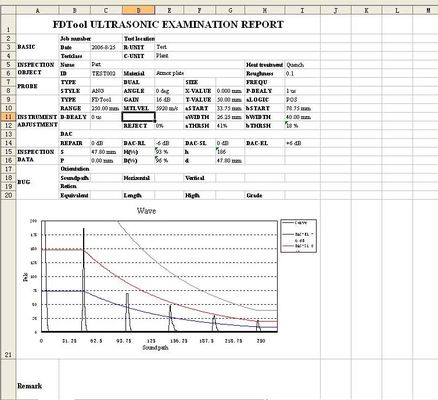

·Powerful pc software and reports can be export to excel

Features :
·         Automated calibration of transducer Zero Offset and/or Velocity ；
·         Automated gain, Peak Hold and Peak Memory；
·         Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)；
·         Automated switch three staff gauge ((Depth d, level  p, distance s)；
·         100 independence setup, any criterion can be input freely, we can work in the scene without test block；
·         Big memory of 300 A graph and 30000 thickness value.
·         B scan；

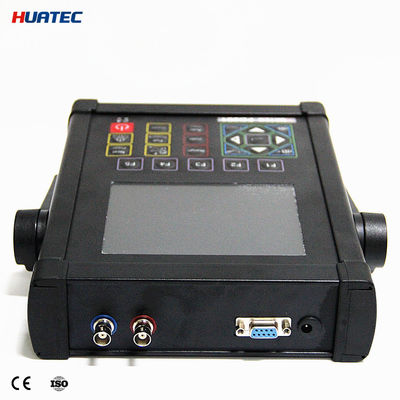

·         RS232 port/ USB, communication with pc is easy；
·         The embeded software can be online updated；
·         Li battery, continue working time up to 10 hours;
·         Other assistant function;
·         Display freeze;
·         Automated echo degree;
·         Angles and K-value;
·         Lock and unlock function of system parameters;
·         Dormancy and screen savers;
·         Electronic clock calendar ;
·         Two gates setting and alarm indication;
·         High-speed capture and very low noise;
·         DAC, AVG, B Scan ; Solid metal housing (IP65);
·         Automated make video of test process and play;
·         Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
Main Technical Index:
Title
Parameter
Title
Parameter
Measuring Range(mm)
2.5 ～  10000
Measurement Mode
Single, Dual, Thru
Vertical Linearity Error
≤3%
Reject
0~80%
Horizontal Linearity Error
≤0.1%
Pulse Displacement(μs)
-20 ～  +3400
Sensitivity Leavings
60dB
Zero(μs)
0.0 ～  99.99
Pulse Displacement
32dB
Port Type
BNC
Resolving Power
≥40
Operating Temperature  (℃)
-20～50
Frequency Range(MHz)
0.5 ～  20
H×W×D(mm)
240×180×50
Gain(dB)
0 ～  110
Weight(kg)
1.8
Material Velocity(m/s)
1000 ～  9999

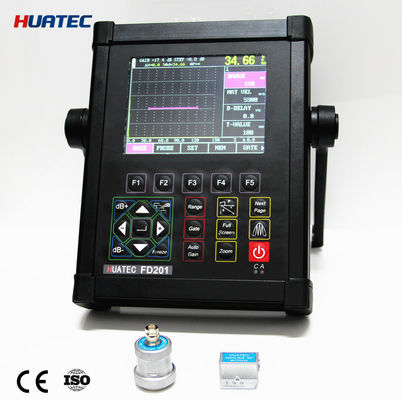

Standard Delivery:

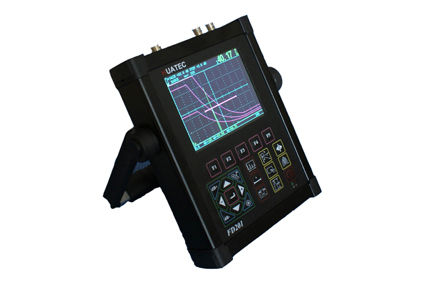

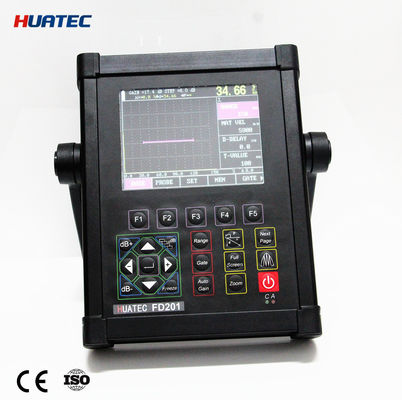

Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual

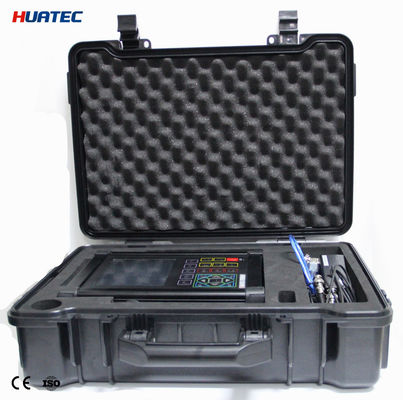

Carrying case

Additional Accessories:

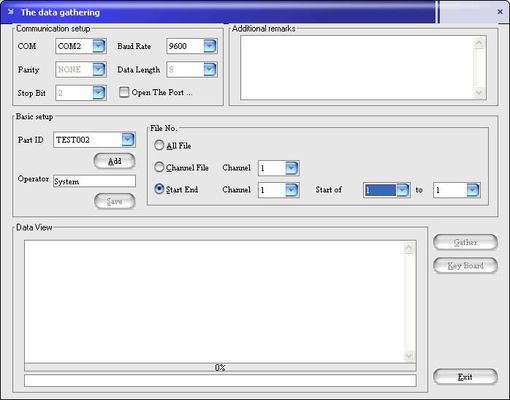

Data managing software  for digital ultrasonic flaw detector
Data managing cables RS232  for digtial ultrasonic flaw detector
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 01)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
