Black Penetrant Testing Handheld 365nm LED Cold Light UV Lamp AC100-240V
| Lugar de origen | En Beijing |
|---|---|
| Nombre de la marca | HUATEC |
| Certificación | ISO, CE, GOST |
| Número de modelo | DG-100 100D |
| Cantidad de orden mínima | 1 piezas |
| Detalles de empaquetado | Paquete estándar de exportación |
| Tiempo de entrega | 1-4days |
| Condiciones de pago | T/T, PayPal, Western Union |
| Capacidad de la fuente | 500 piezas por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
En WeChat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| El color | Negro | Iluminación ultravioleta | El uso de la tecnología de la información en el ámbito de la seguridad de los datos de seguridad es |
|---|---|---|---|
| Fuente de alimentación | AC100~240V 50/60 Hz | Diámetro de la ventana de entrada de luz | Diámetro de la ventana de entrada de luz |
| Resaltar | dye flaw detection,penetrant test block |
||
Descripción de producto

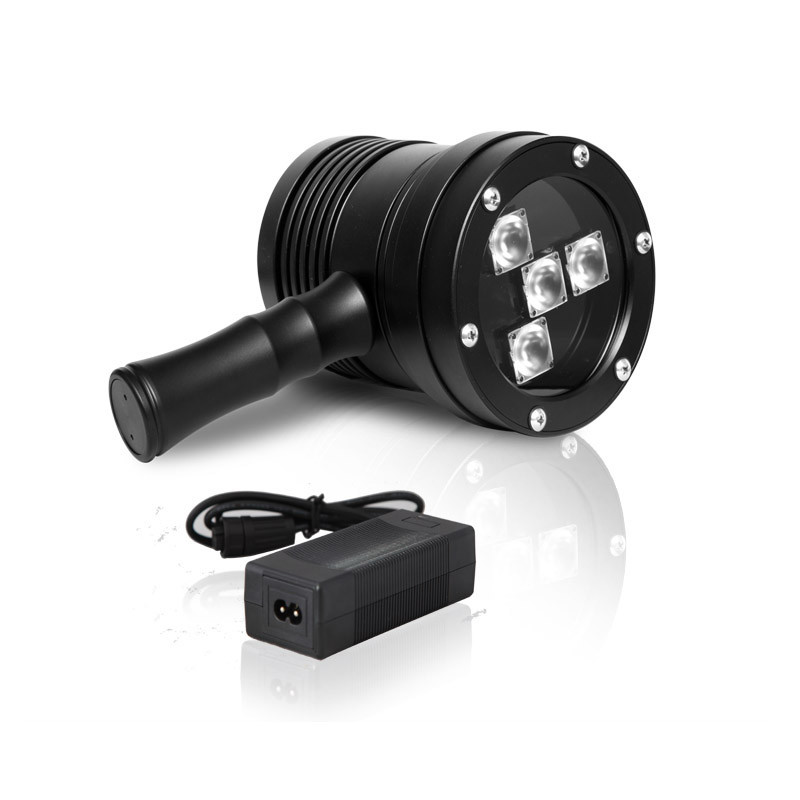

IEC 60529 Aluminum alloy Handheld LED cold light UV lamp 365nm Ultraviolet band
DG series LED UV lamp is researched and developed by our company aim for fluorescence magnetic particle inspection, fluorescence reentrant inspection etc. The handheld type and cold light source is ready for use anytime. Features of all aluminum alloy structure, ultra-high illuminance and ultra-low power dissipation. It conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).
Range of Application
- Fluorescence Penetrant Testing
- Fluorescence Magnetic Particle Flaw Detection
- Fluorescence Leak Detection
Other Application
- Oil Stain, Blot Testing
- Special Gas, Oil and Gas Pipeline Testing
- Fluorescence Reflection Detection for Special Materials
- Criminal Investigation and Legal Medical Expert Survey
- Paper Money Authentication, Jewel Appreciation
- Agriculture, Foodstuff, Medical Treatment and other relevant industries.
Characteristic and Performance
HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B and UV-C element, pure spectrum.
The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
High power output, quick start, can reach the maximum illuminance as soon as switched on.
Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.
Optical filter is high UV transmittance transparent Quartz optical glass.
The shell of the instrument is made of 6061-T6 high strength aluminium alloy precision machining. The surface is anodized, sturdy and durable.
The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.
With anti magnetic interference function, it can be used in high-intensity magnetic field.
Both switch and jack socket are at the end of the instrument, make it convenient to use and avoid misoperation.
The product has passed through International Standard of IEC 60529 dustproof and waterproof testing, wider working environment and more reliable.
Specifications
|
|
DG-100 | DG-100D | |||||
| Maximum Central Intensity of Ultraviolet Ray at 38cm Distance | 16000uW/cm2 | 9000uW/cm2 | |||||
|
Irradiated Area at 38cm Distance (≥1200 uW/cm2) |
￠250mm | ￠200mm | |||||
| Visible Light Illumination | 10.89 lux | 9.21 lux | |||||
| Light Source | 365nm UV-A LED | ||||||
| Number of Beads | 5 | 4 | |||||
| Input Voltage |
100-240V AC 50/60Hz |
16.8V DC | |||||
| Battery Specification | - | 8 3.7 V 2600mAhICR 18650 | |||||
| Battery Operating Time | - | 7 hours | |||||
| Charging Time | - | 4 hours | |||||
| Cooling System | Built-in fan | ||||||
| Outline Dimension | Lamp Head Diameter | 120mm | |||||
| Diameter of Light Inlet Window | 88mm | ||||||
| Length | 190mm | ||||||
| Handle Length | 120mm | ||||||
|
Weight (including Battery) |
1290g | 1290g | |||||
Standard Configuration
| DG-100 | DG-100D | |
| Main Device | 1 | 1 |
| Power Line | 1 | - |
| Adapter | - | 1 |
| Portable Backpack | 1 | 1 |
| Protective goggles | 1 | 1 |
| Operation Instruction | 1 | 1 |
| Certification | 1 | 1 |
| Warranty Card | 1 | 1 |
| Packing List | 1 | 1 |
Optional Configuration
| Sealed Instrument Case | 1 |
