4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator

  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
  • 4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator
Lugar de origen En Beijing
Nombre de la marca HUATEC
Certificación ISO, CE, GOST
Número de modelo El TG-2910
Cantidad de orden mínima 1 piezas
Detalles de empaquetado Paquete estándar de exportación
Tiempo de entrega 1-4days
Condiciones de pago T/T, PayPal, Western Union
Capacidad de la fuente 500 piezas por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Resaltar

portable ultrasonic thickness gauge

,

through coating thickness gauge
Deja un mensaje
Descripción de producto

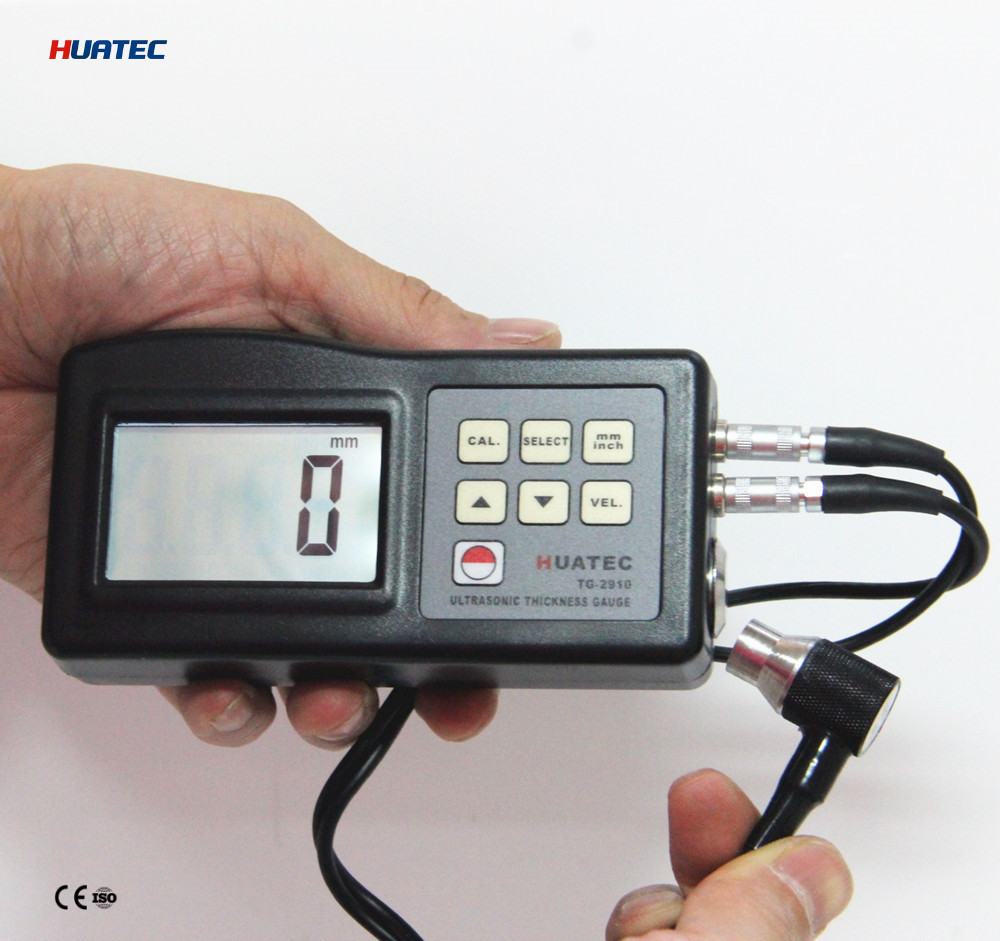

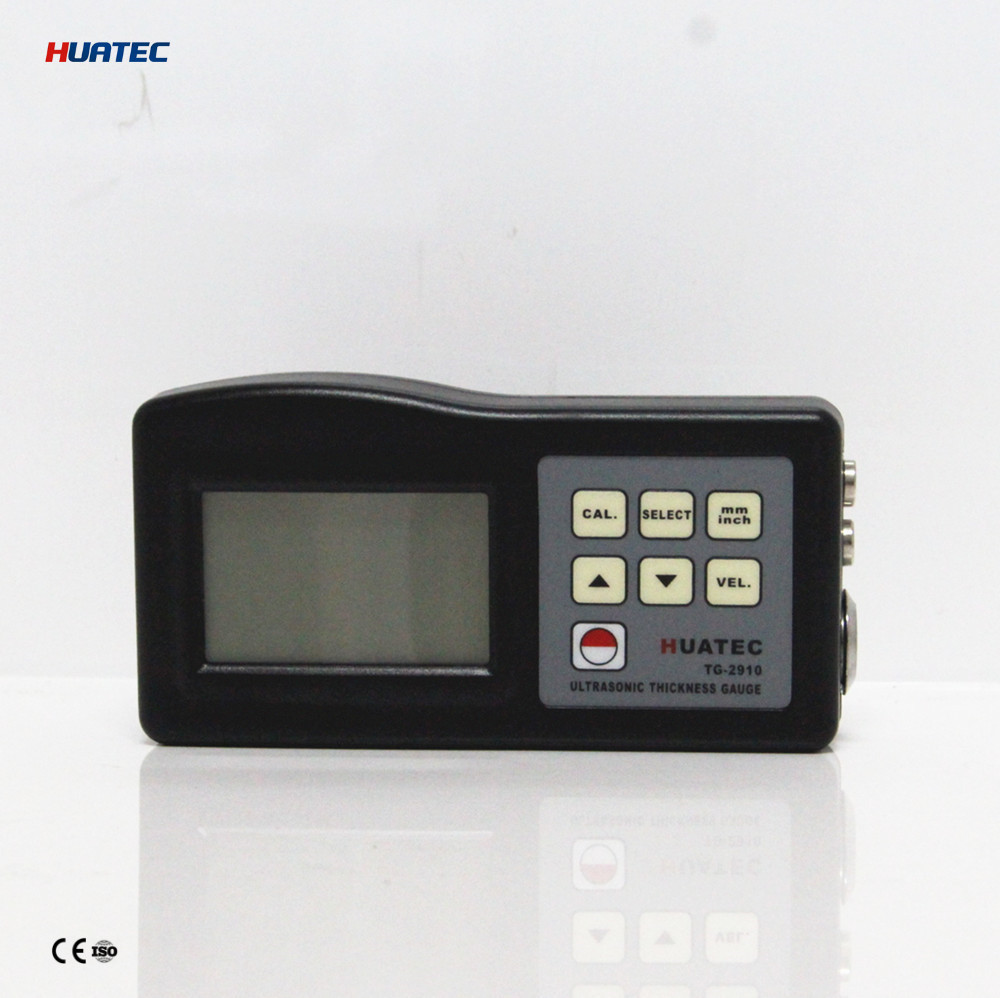

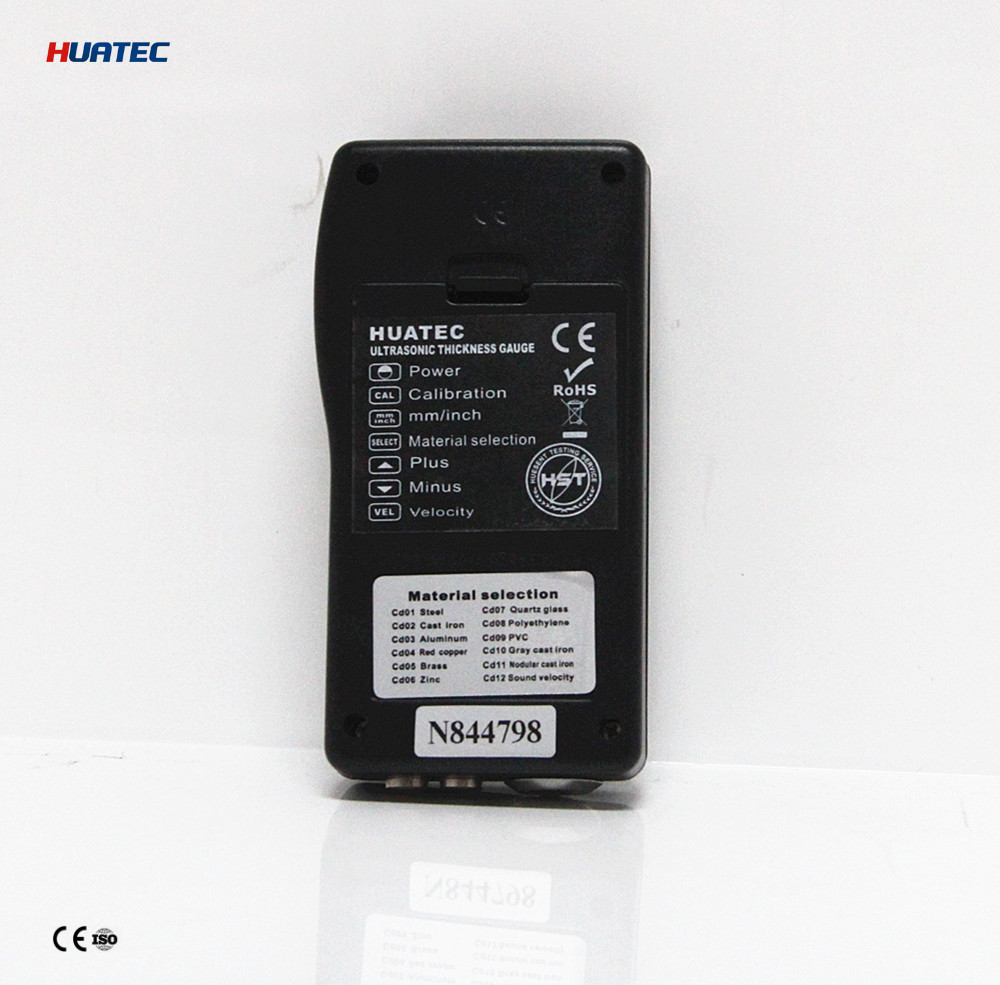

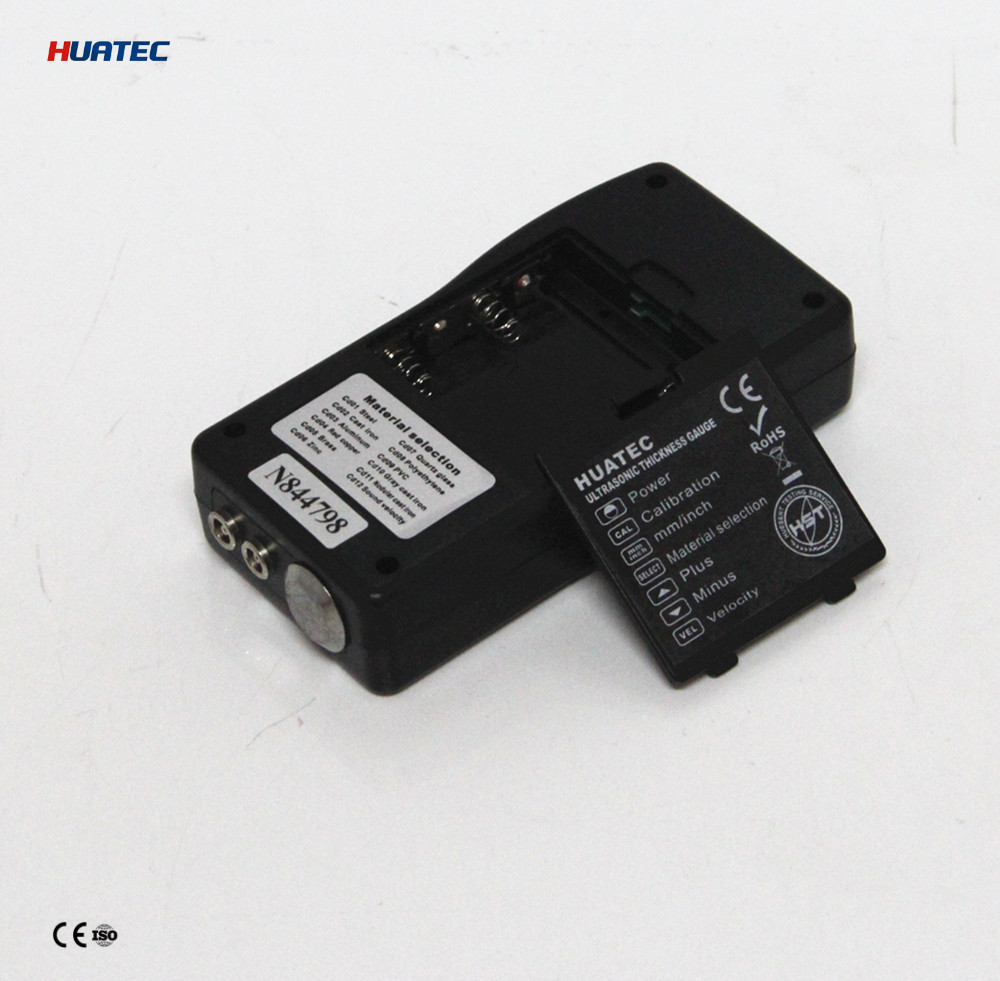

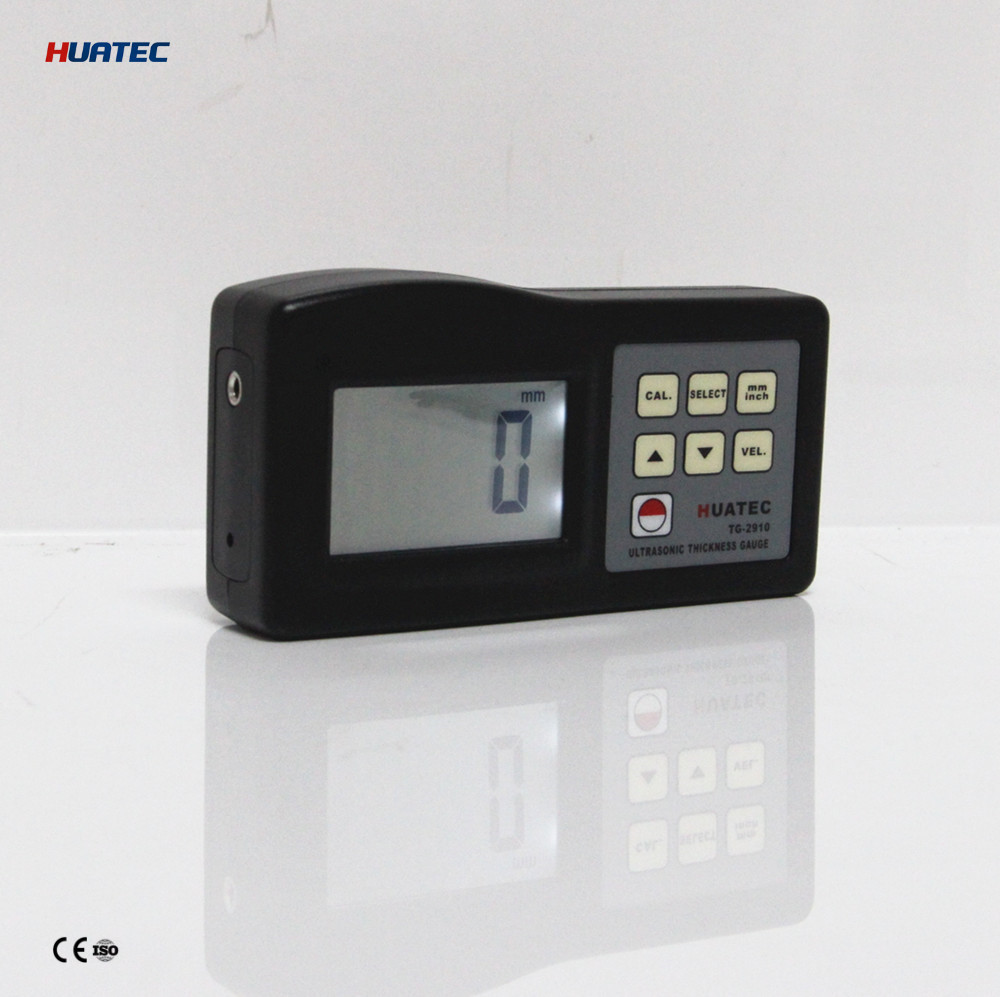

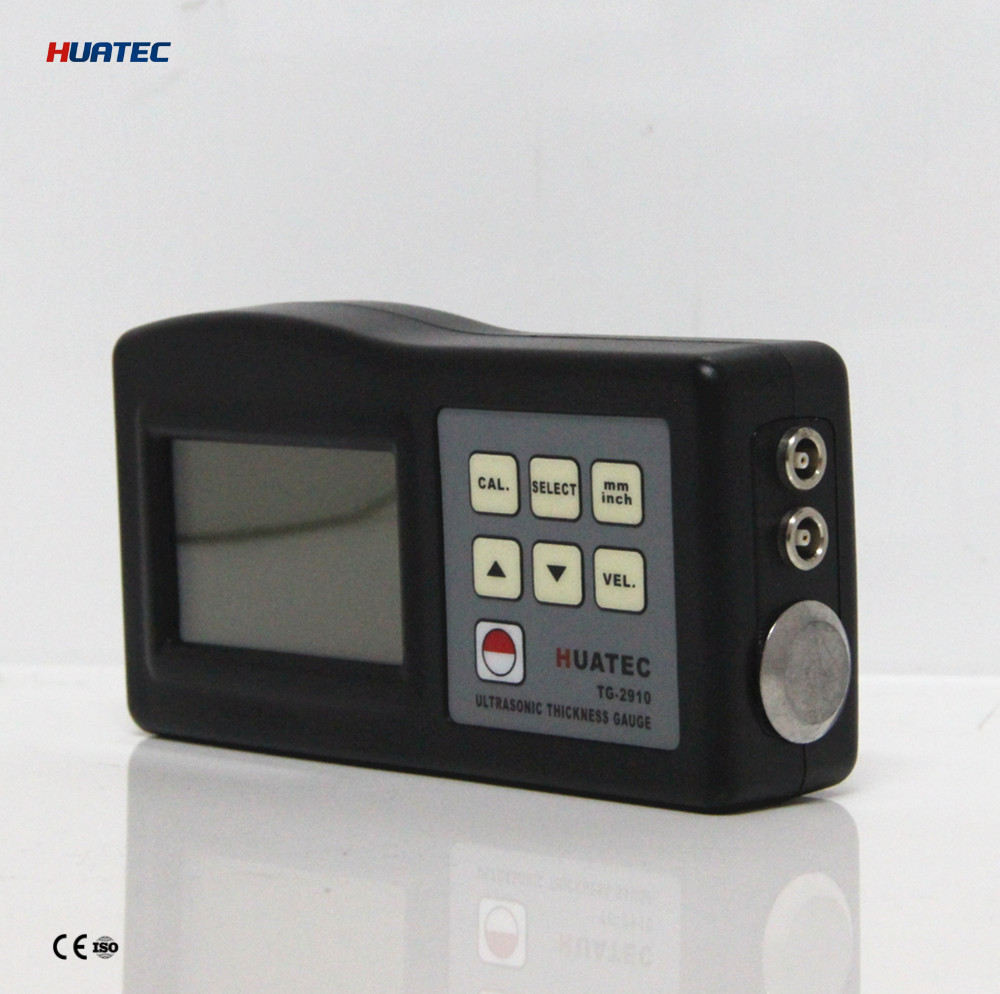

4 Digits LCD with EL backlight Ultrasonic Thickness Gauge TG-2910 for Measuring Thickness and corrosion of Boilers





Application



Ultrasonic Thickness Gauge TG-2910 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.



Description



Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch

Operating principle: ULTRASONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 4 digits LCD with EL backlight

Resolution: 0.01mm

Accuracy: ±(0.5%H+0.1)

Power supply: 4x1.5V AA(UM-3)battery

Batteryindicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 120x62x30mm

Weight: 164g (not including battery)



Standard Delivery



Main unit                                1
5M Φ8 Transducer            1
Couplant  bottle                  1
Carrying case                       1
Instruction manual           1



Optional Accessories for Ultrasonic Thickness Gauge TG-2910



1. 6M Φ6mm thin material probe:

 measuring range (steel): 1.0-50.0mm    Operating temperature:-10-+60℃

5MΦ12mm high temperature probe:

 measuring range (steel):4.0-100.0mm  Operating temperature:-10-+300℃

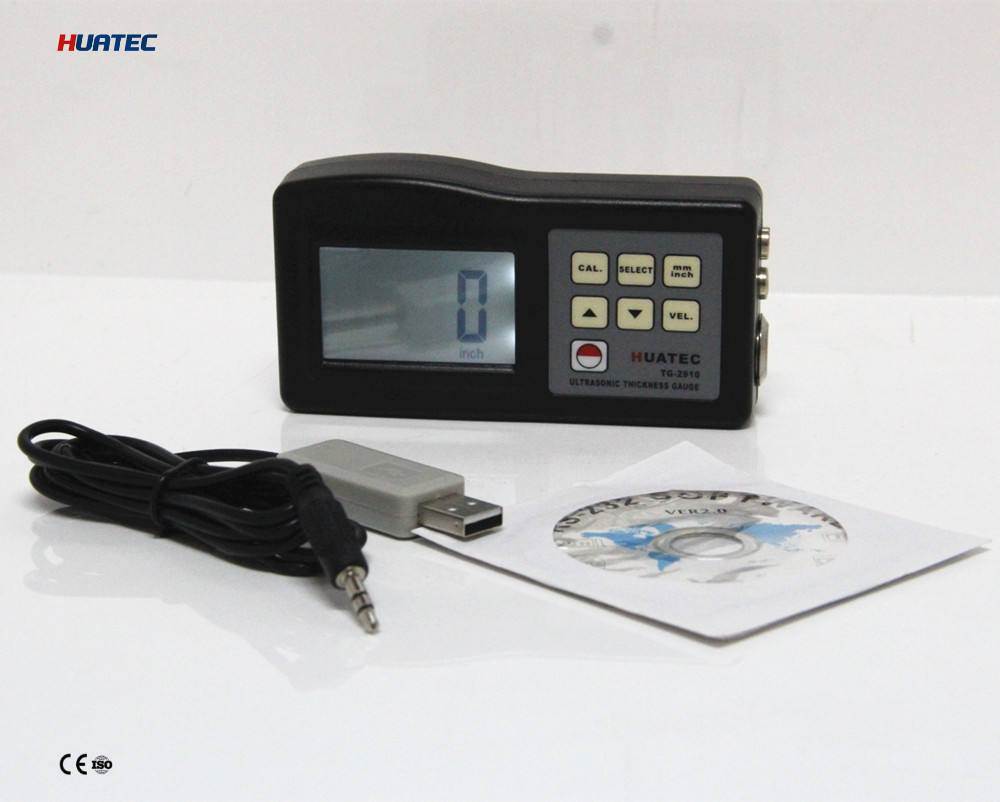

3. Cable and Software for RS232C interface



4 Digits LCD with EL backlight Ultrasonic Thickness Gauge Ultrasonic Thickness Indicator 0



Sound velocity

Platinum 0.130 3300
Plexiglass 0.110 1700
Polyethylene 0.070 1900
Polystyrene 0.0930 2400
Polyurethane 0.0700 1900
Quartz 0.230 5800
Rubber, Butyl 0.070 1800
Silver 0.140 3600
Steel, Mild 0.232 5900
Steel, Stainless 0.230 5800
Teflon 0.060 1400
Tin 0.130 3300
Titanium 0.240 6100
Tungsten 0.200 5200
Uranium 0.130 3400
Water 0.584 1480
Zinc 0.170 4200
